General Details
Electronic tap with anti-scratch and anti-limescale DMP sensor
Coil integrated in the sensor (DMP Patent Pending)
4.5V waterproof electronic circuit
Sensor beam adjustable from 5 to 30 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Polished chrome-plated brass body
With built-in, under sink mixer or for pre-mixed water
Version with mixer vandal-proof safety cap
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer”

Model and feeding

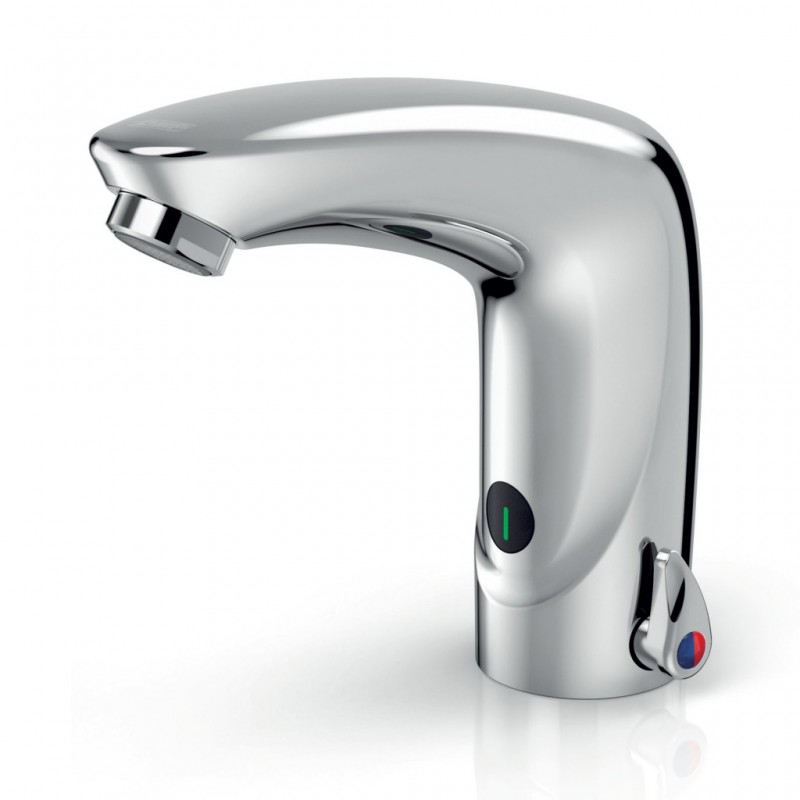

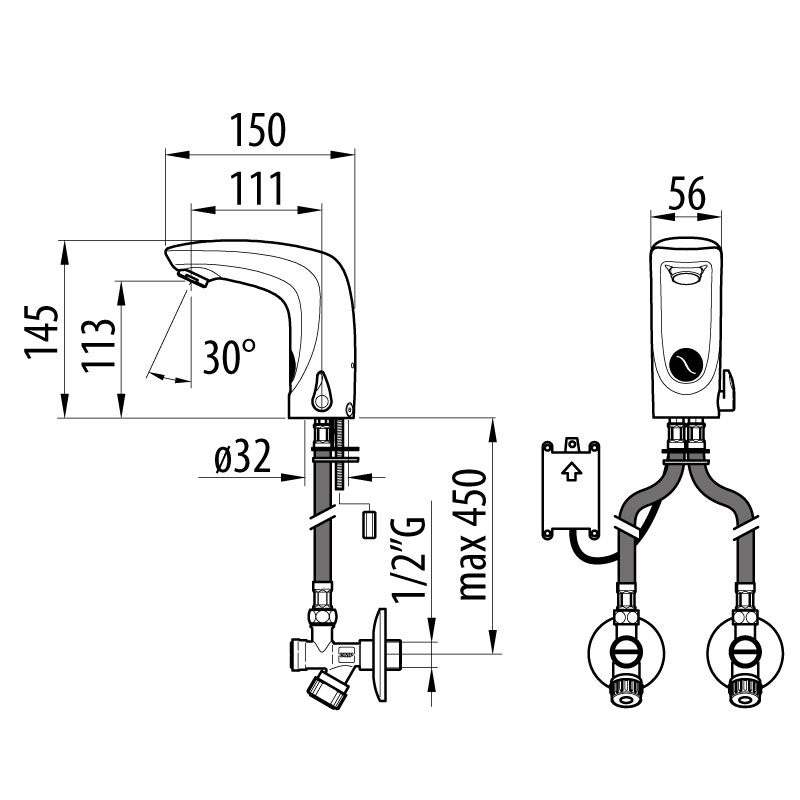

  1. SetteMix with hot/cold water mixer
    SetteMix
    Power: Electricity or battery
    Colours: Polished chrome

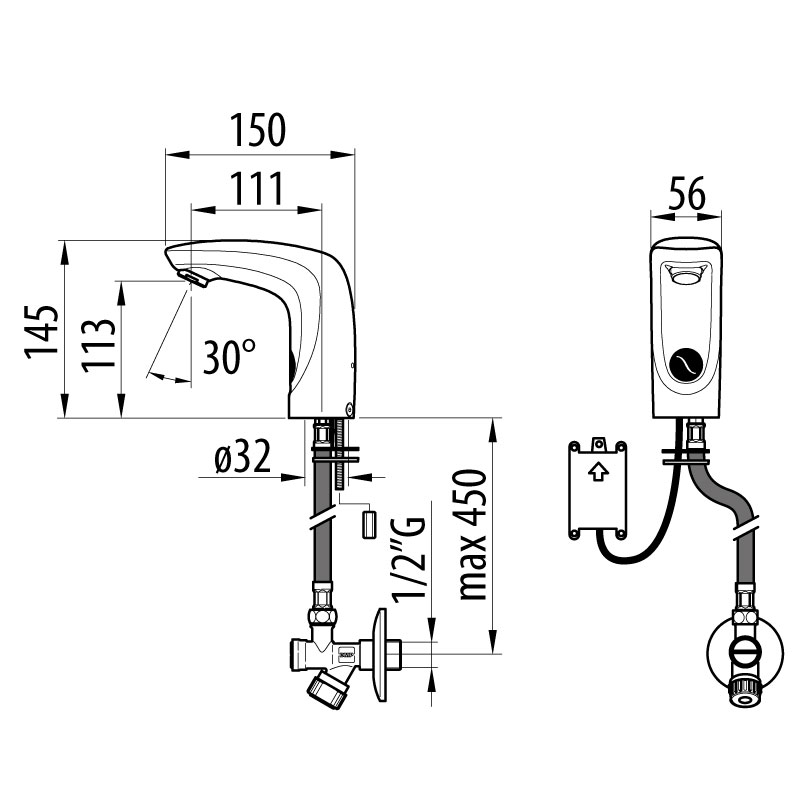

  2. Sette for cold or pre-mixed water
    Sette
    Power: Electricity or battery
    Colours: Polished chrome

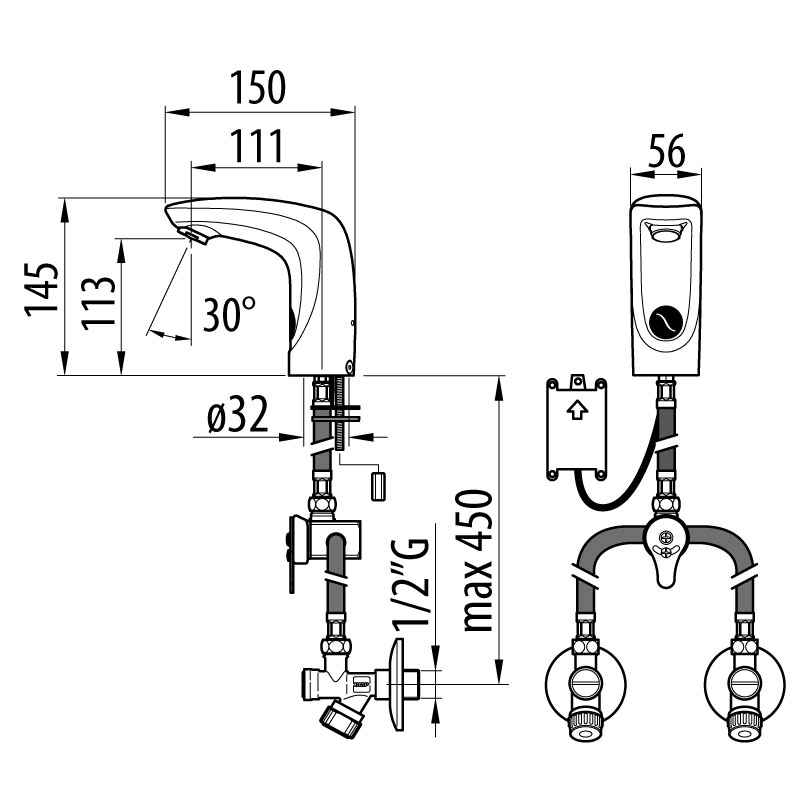

  3. Sette MS with under sink mixer
    Sette MS
    Power: Electricity or battery
    Colours: Polished chrome
    Notes: The mixer handle can be blocked after the adjustment

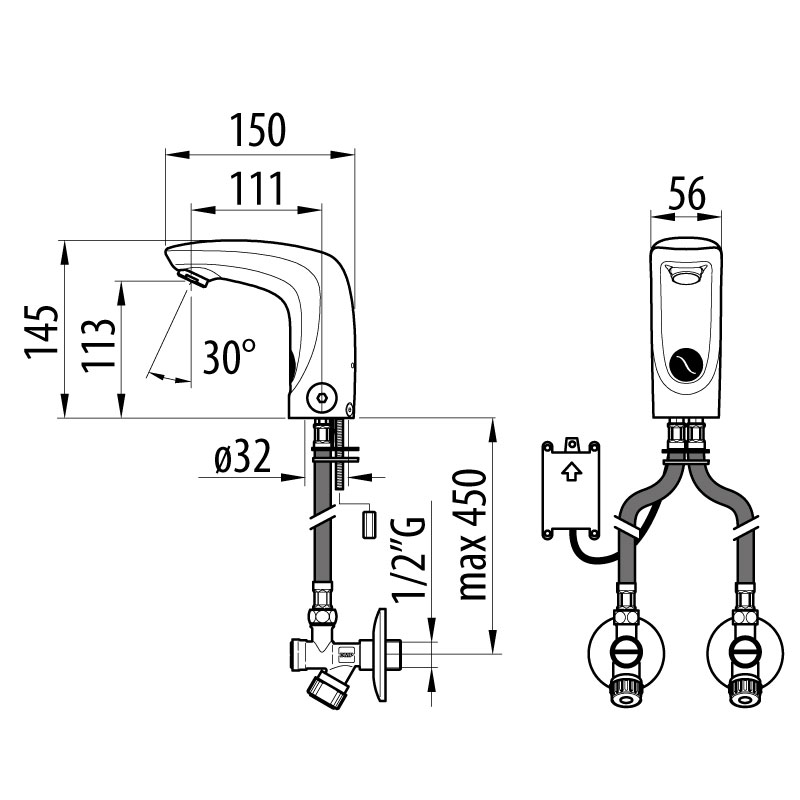

  4. Sette TL with internal safety mixer
    Sette TL
    Power: Electricity or battery
    Colours: Polished chrome
    Notes: Mixer with vandal-proof safety side cap

Data Sheet (only for registered users)

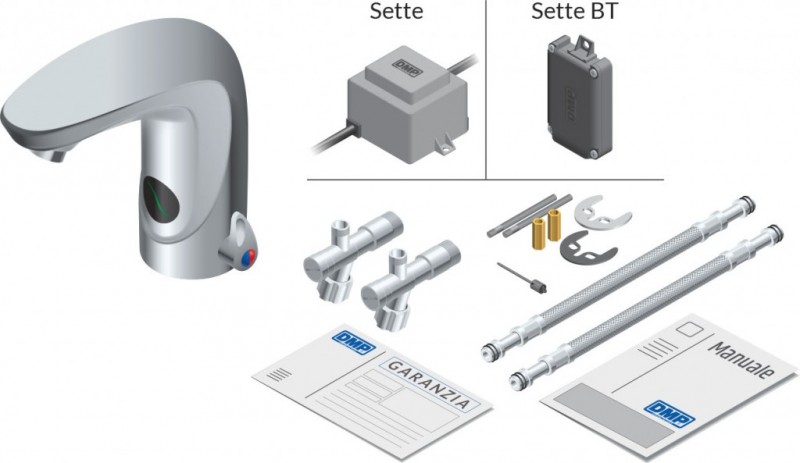

Pack contents
