SBD
General Details

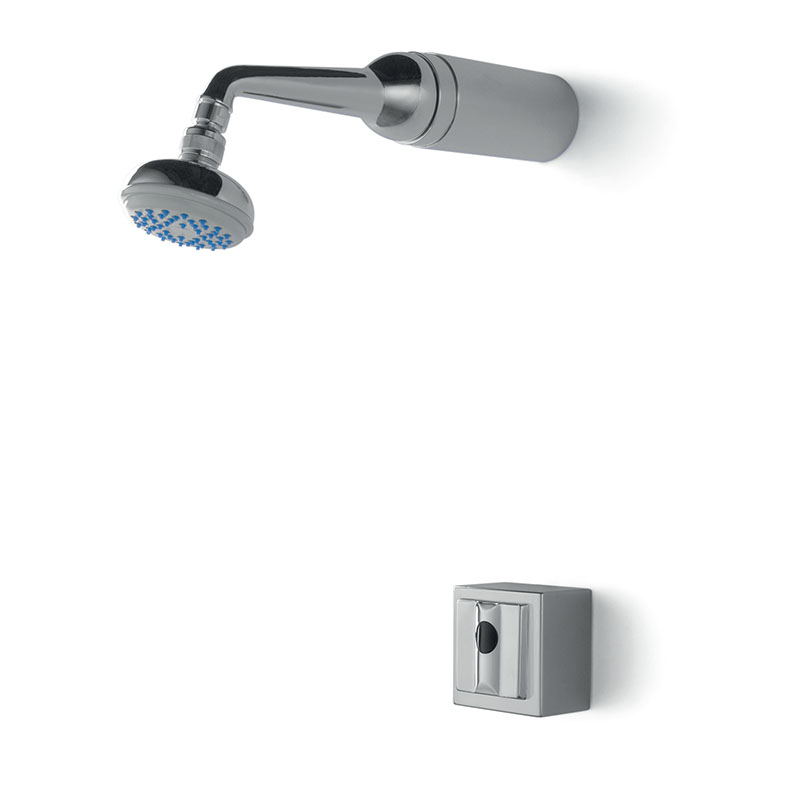

External electronic shower for retrofit installations
Scratch-proof DMP Infrared Sensors protected against calcium deposits
Available with standard or on-off Wireless sensor
For cold or pre-mixed water
External chassis in polished stainless steel AISI 304 (type SBD)
External chassis in ABS with tempered glass sensor (type SBD Wi-Fi)
4.5V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Stop taps with non-return valves
0.2mm mesh stainless steel filters
Scratch-proof DMP Infrared Sensors protected against calcium deposits
Available with standard or on-off Wireless sensor
For cold or pre-mixed water
External chassis in polished stainless steel AISI 304 (type SBD)
External chassis in ABS with tempered glass sensor (type SBD Wi-Fi)
4.5V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Stop taps with non-return valves
0.2mm mesh stainless steel filters
For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case
For mains models
230Vac – 5Vdc safety transformer
Model and feeding
- Sbd for cold or pre-mixed waterDoccia SbdPower: Electricity or battery
Colours: Polished chrome
Notes: SD Plus shower arm with built-in solenoid valve supplied
- Sbd Wi-Fi for cold or pre-mixed water - On-Off SensorDoccia Sbd Wi-Fi BTAlimentazione: Batteria
Colori disponibili: Cromo lucido
Note: Controllo Wi-Fi fra sensore ed elettrovalvola. Braccio doccia SD Plus con elettrovalvola incorporata fornito

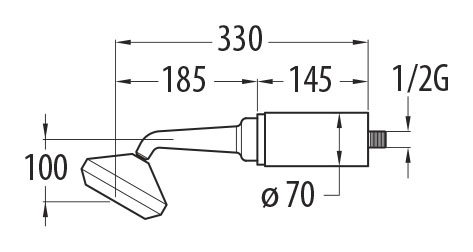

- SD Plus for cold or pre-mixed waterSD-Plus 12Alimentazione: Batteria
Colori disponibili: Cromo lucido
Note: Braccio doccia con elettrovalvola incorporata e cover regolabile con predisposizione per l’azionamento da comandi remoti. Cover regolabile. Doccetta anticalcare.

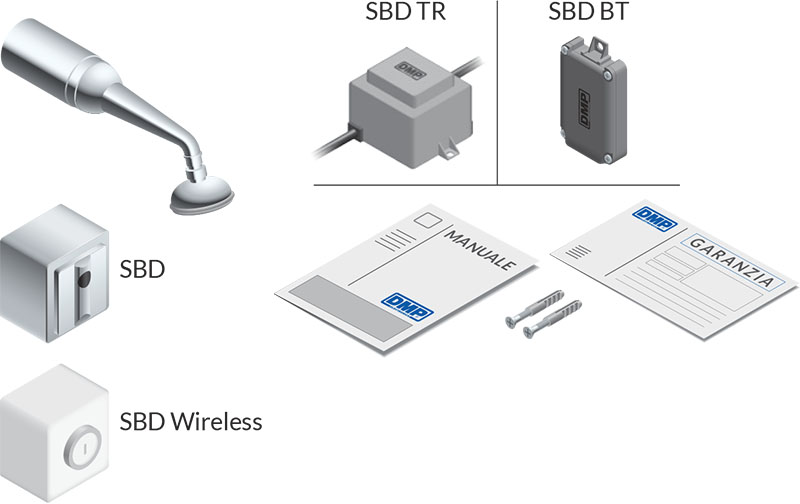

Pack contents
Contents of package
