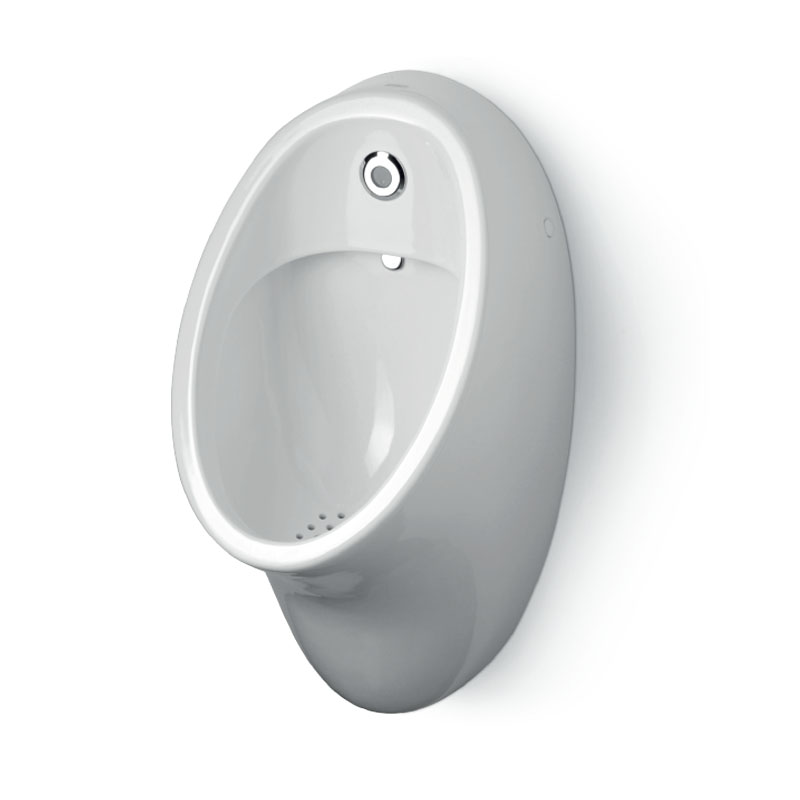

Saniflush

General Details
Single urinal with electronic system built into the urinal bowl
“DMP Infrared Sensor” in tempered anti-limescale glass
Sensor body in AISI 316 stainless steel

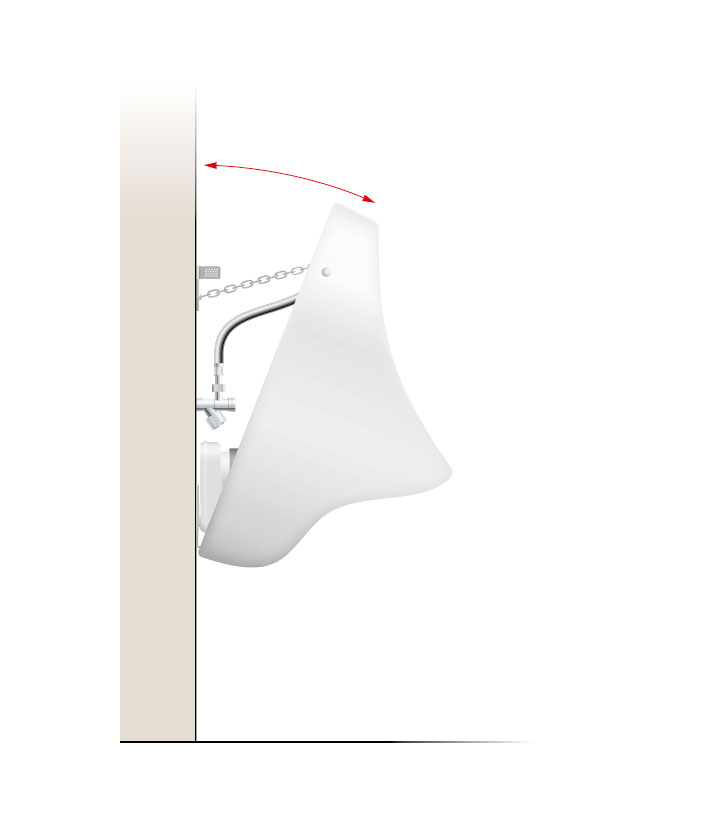

Tilt opening system with safety device
3V waterproof electronic circuit
Sensor beam adjustable from 20 to 80 cm
Functions optimized using DMP integrated software
Water flush with 2 methods:
– on approach
– on leaving
Antibacterial automatic courtesy flush every 12 hours
Possible arrangement for floor washing grid
AISI 304 stainless steel universal rear wall mount bracket
Ø 40 mm built-in articulated syphon
Stop tap with 0.2 mm mesh stainless steel filters

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

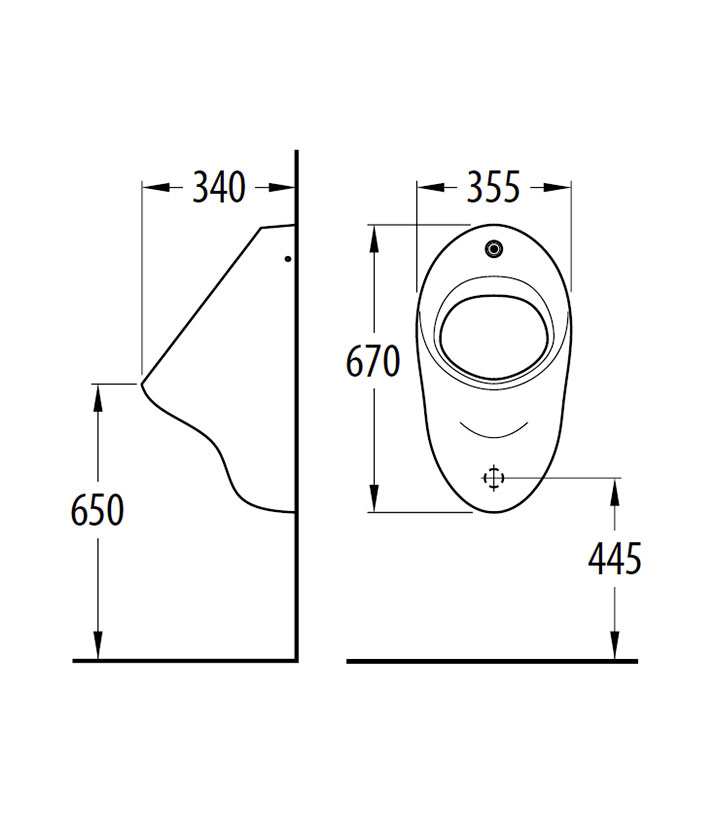

  1. Saniflush MTD standard version
    Saniflush Mtd
    Power: Electricity or battery
    Flush: On approach or on leaving.
    Notes: With double solenoid valve and articulated syphon. 2 sec. initial flow and flush on leaving.
    * measures in millimeters

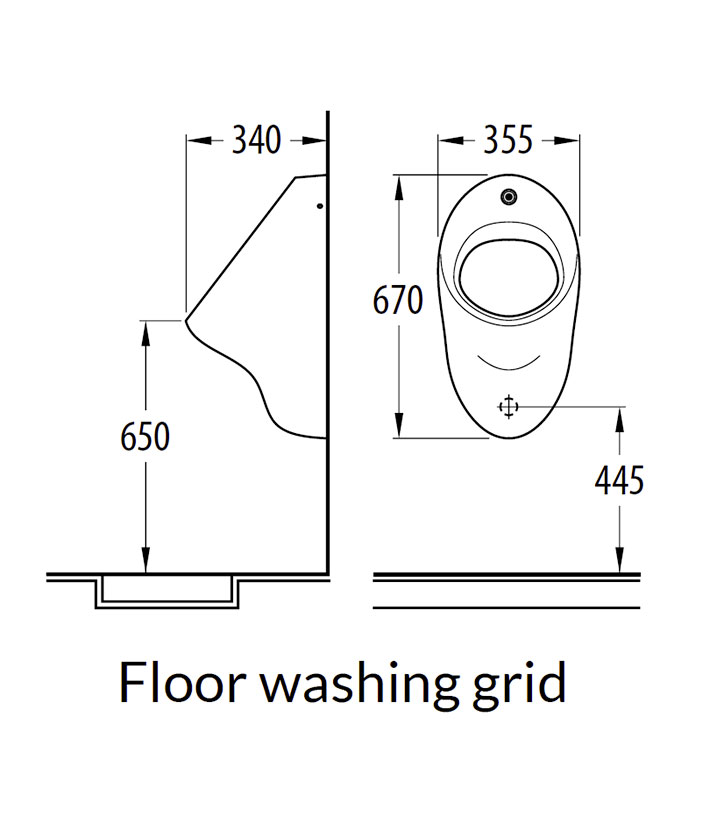

  2. Saniflush LPV for floor washing grids
    Saniflush Lpv Mtd
    Power: Electricity or battery
    Flush: On approach or on leaving.
    Notes: With double solenoid valve and articulated syphon. 2 sec. initial flow and flush on leaving.
    * measures in millimeters

  3. Accessories
    Metal frame
    for plasterboard walls
    per Saniflush
    * measures in millimeters

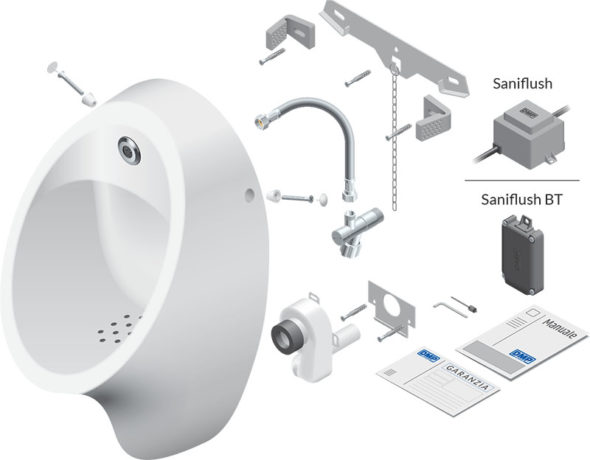

Pack contents
Contents of the package

Contents of the package

Notes

With tilting system for maintenance and with articulated syphon.
