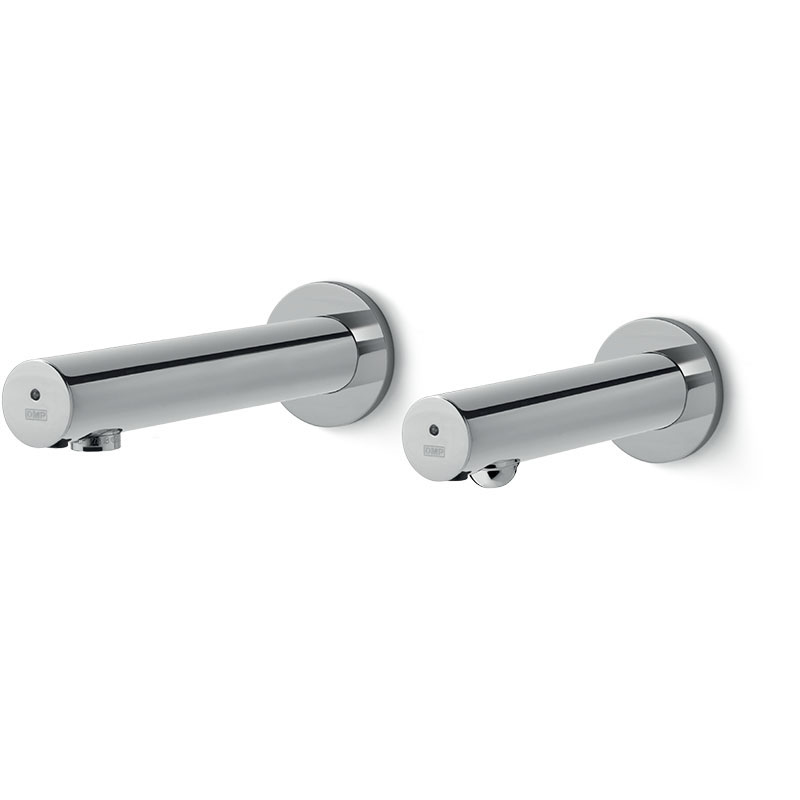

Rubidos 12

General Details
Model and feeding
Pack contents
Notes

General Details

Electronic system consisting of recessed tap and soap dispenser
Scratch-proof DMP Infrared Sensors protected against calcium deposits
AISI 304 stainless steel recessed boxes
Sensor beam adjustable from 3 to 12 cm
Functions optimized using DMP integrated software
Tap and dispenser body in chrome-plated brass
For both pre-mixed water and with mixer
Soap dose adjustable from 1ml to 6ml
Quick soap refill button
Professional peristaltic pump
3-litre tank
Degree of protection of electrical parts: IP65
Solenoid valve with 3 built-in filters
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves
Water pressure: from 0.4 to 7 bar
Pipe fittings: 1/2 G

Power
230Vac – 0Vac safety transformer

Model and feeding

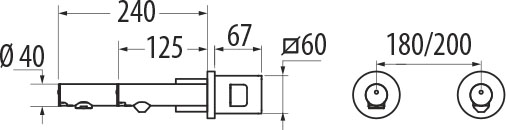

Rubidos 12 Mix with hot/cold water mixer

Rubidos 12 Mix

Power: Electric current
Colours: Polished chrome, Satin chrome
Notes: Adjustable dose between 1 and 6 ml of liquid soap.

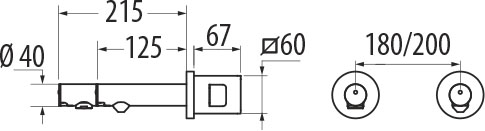

Rubidos 12 for cold or pre-mixed water

Rubidos 12

Power: Electric current
Colours: Polished chrome, Satin chrome
Notes: Adjustable dose between 1 and 6 ml of liquid soap.

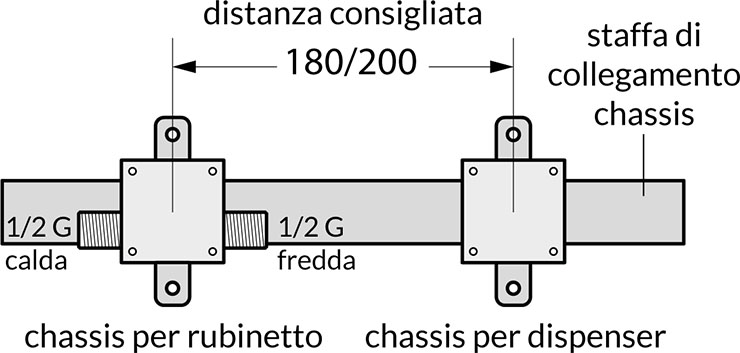

Built-in accessory

Metal frame

included in the kit

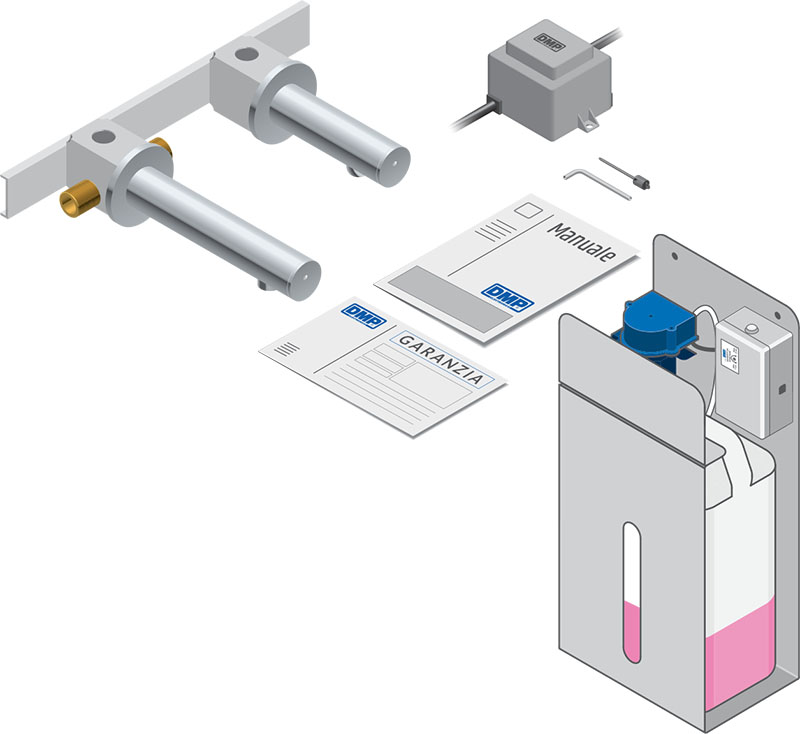

Pack contents

Contents of the package

Notes

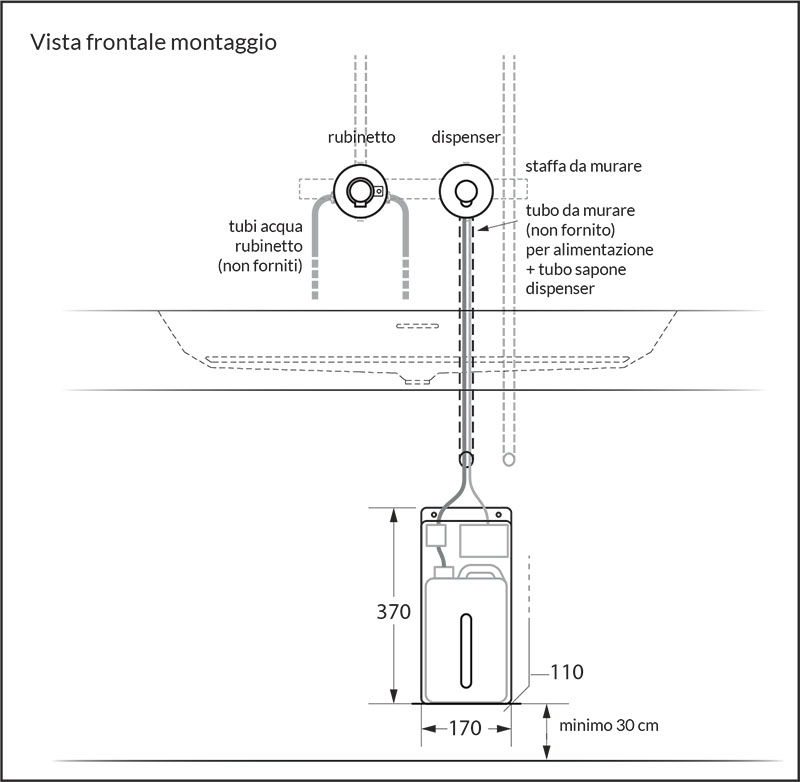

Assembly front view

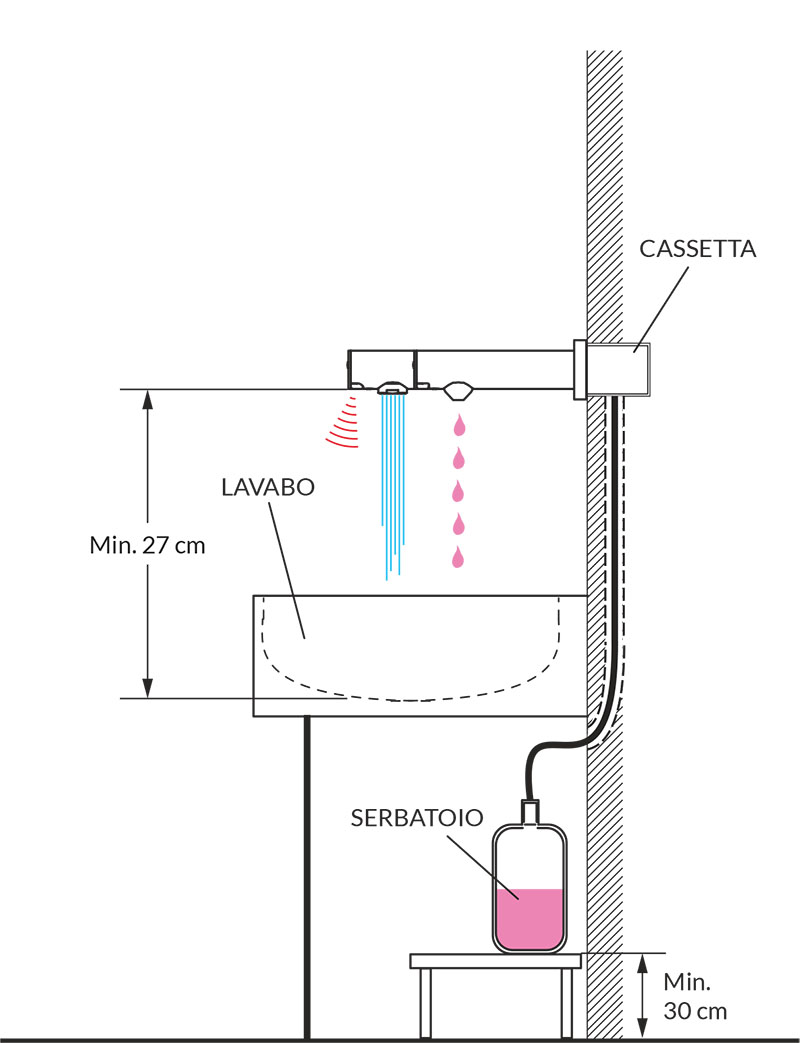

Installation type
