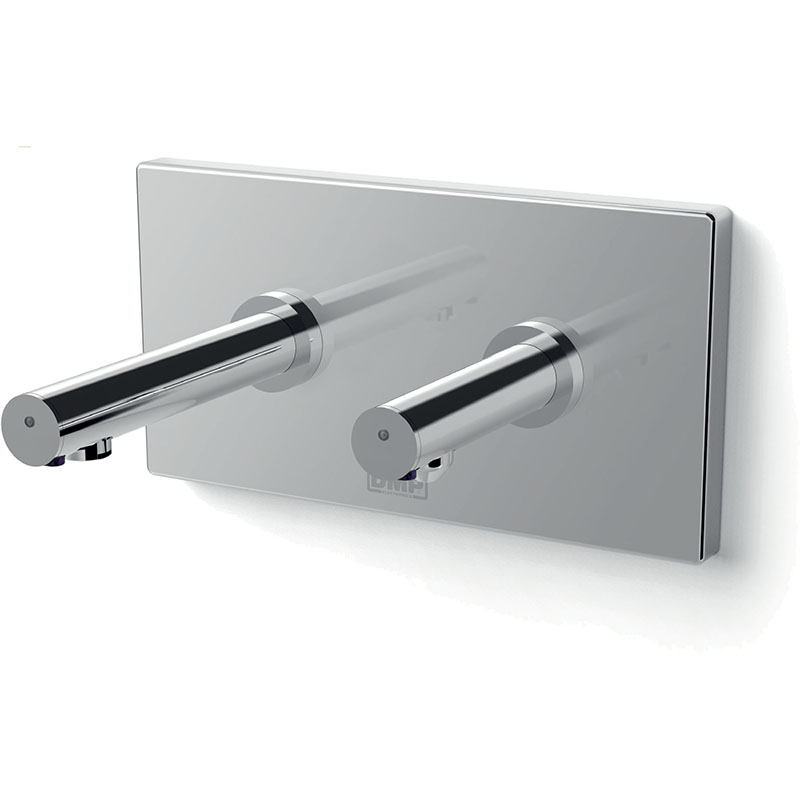

Rubidos 01

Electronic system consisting of recessed tap and soap dispenser
Scratch-proof DMP Infrared Sensors protected against calcium deposits
Horizontal plate and recessed box in AISI 304 stainless steel
Mechanical and hydraulic parts contained in the internal case

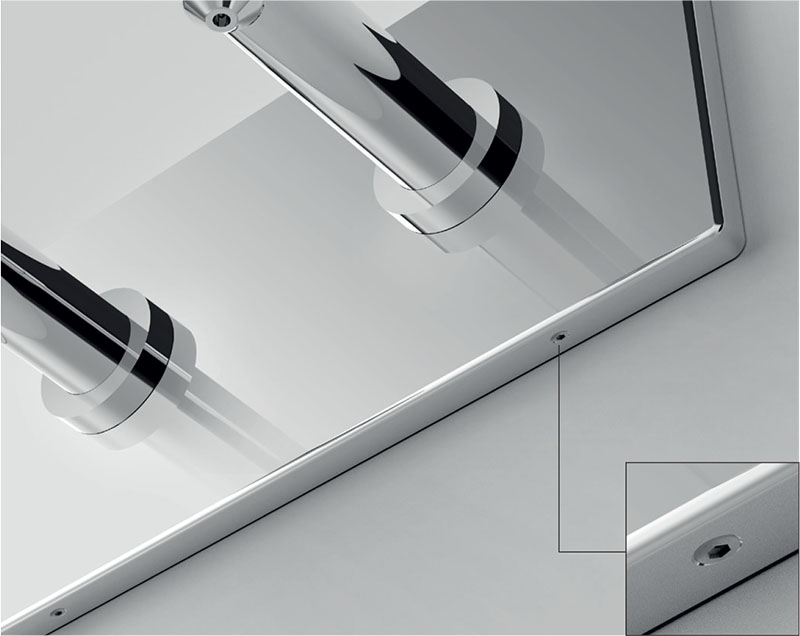

Concealed vandal-proof screws inserted under the plate

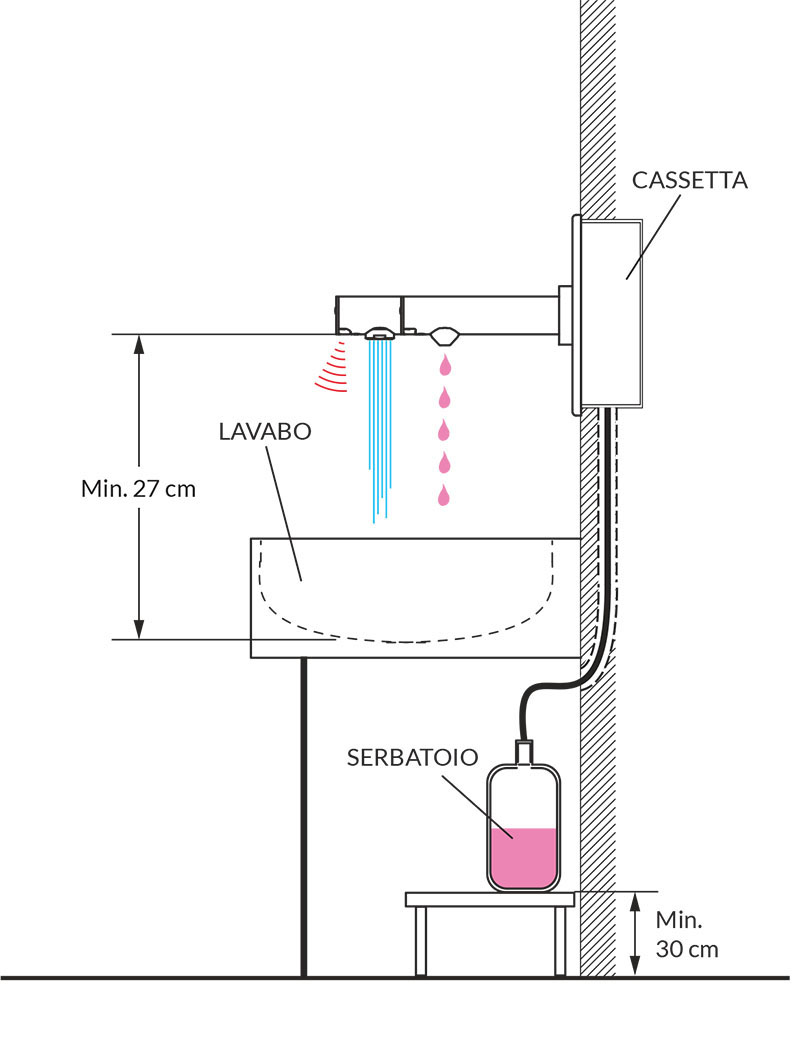

Sensor beam adjustable from 3 to 12 cm
Functions optimized using DMP integrated software
Tap and dispenser body in chrome-plated brass
Soap dose adjustable from 1ml to 6ml
Quick soap refill button
Professional peristaltic pump
5-litre tank
Degree of protection of electrical parts: IP65
Solenoid valve with 3 built-in filters
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves
Water pressure: from 0.4 to 7 bar
Pipe fittings: 1/2 G

Power
230Vac – 0Vac safety transformer
