River Extra

General Details

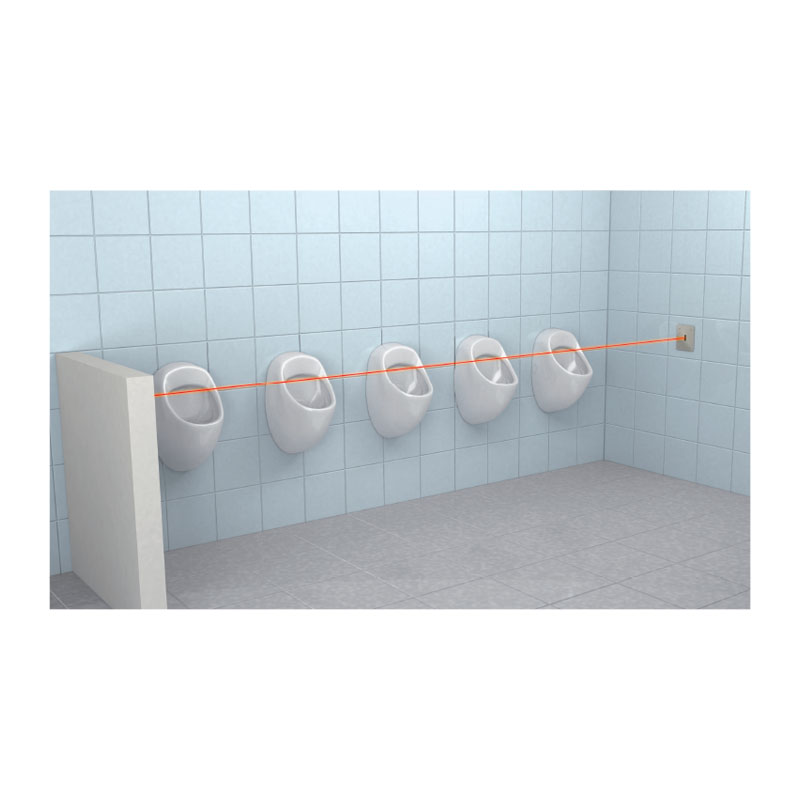

Optical barrier electronic system for multiple urinals with presence detector
Scratch-proof DMP Infrared Sensors protected against calcium deposits
12V waterproof electronic circuit
Sensor beam max 10 metres with reflector
Functions optimized using DMP integrated software
Water flush with the user presence
AISI 304 stainless steel external plate and vandal-proof screws
70 mm deep recessed box
Flow activated after leaving and adjustable between 1 and 10 seconds
Stop tap with 0.2 mm mesh stainless steel filter”

Power
230Vac – 12Vac safety transformer

Model and feeding
  1. River Extra
    River Extra 200
    Power: Electricity
    Solenoid valve: 1/2″
    Notes: Up to 4 urinals. With filter
    River Extra 200
    Power: Electricity
    Solenoid valve: 3/4″
    Notes: From 5+ urinals. Without filter
  2. Duct grids for urinals

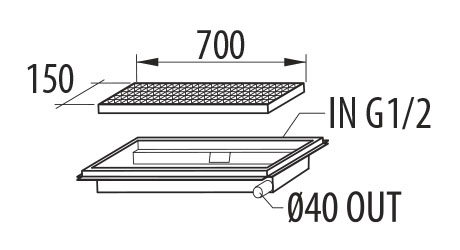

    CG 15/70
    Notes: Stainless steel duct. 1 module heel safe grids
    * measures in millimeters

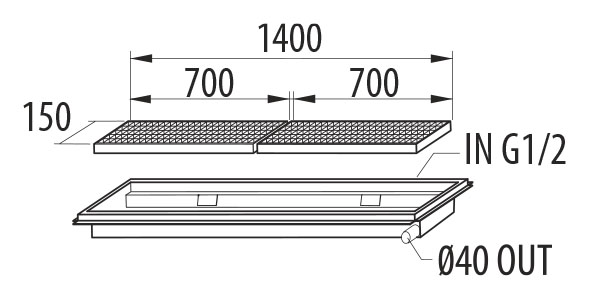

    CG 15/140
    Notes: Stainless steel duct. 2 module heel safe grids
    * measures in millimeters

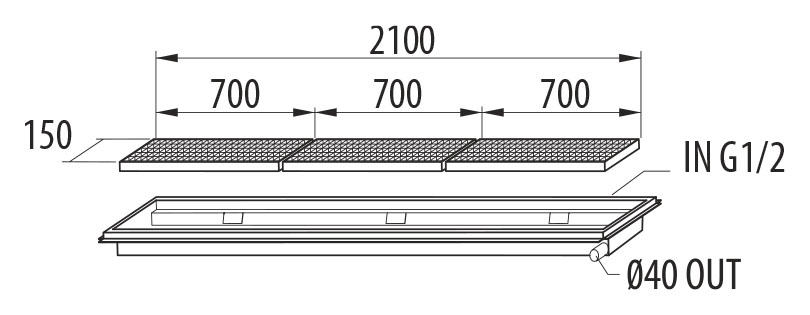

    CG 15/210
    Notes: Stainless steel duct. 3 module heel safe grids
    * measures in millimeters

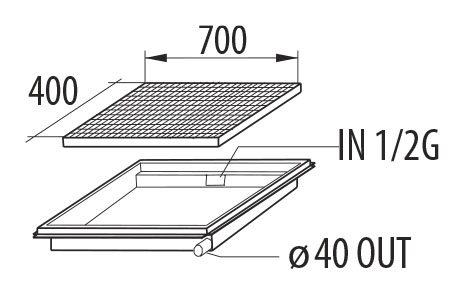

    CG 40/70
    Notes: Stainless steel duct. 1 module heel safe grids
    * measures in millimeters

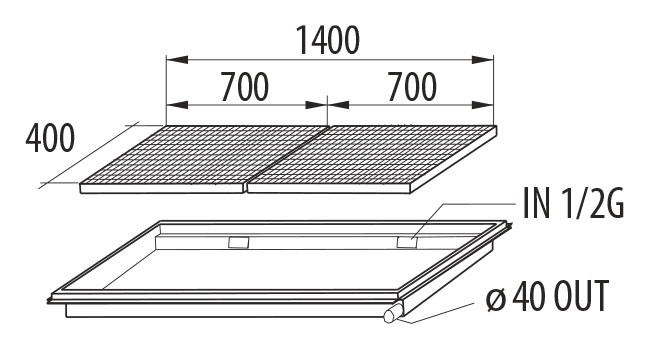

    CG 40/140
    Notes: Stainless steel duct. 2 module heel safe grids
    * measures in millimeters

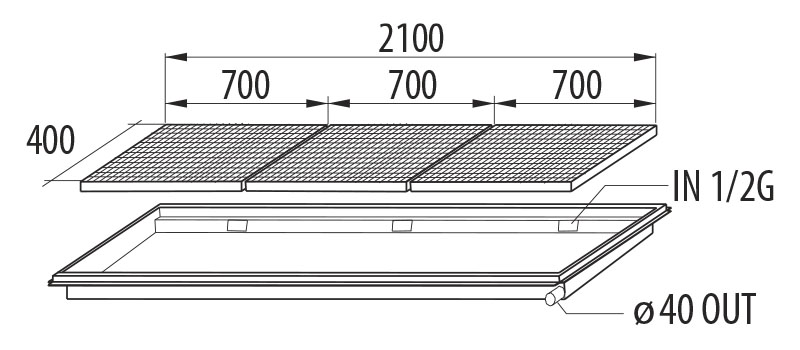

    CG 40/210
    Notes: Stainless steel duct. 3 module heel safe grids
    * measures in millimeters

  3. Urinal partitions
    Panel in laminate HPL
    10 mm thick
    Colori: White, Green, Sandy, Grey

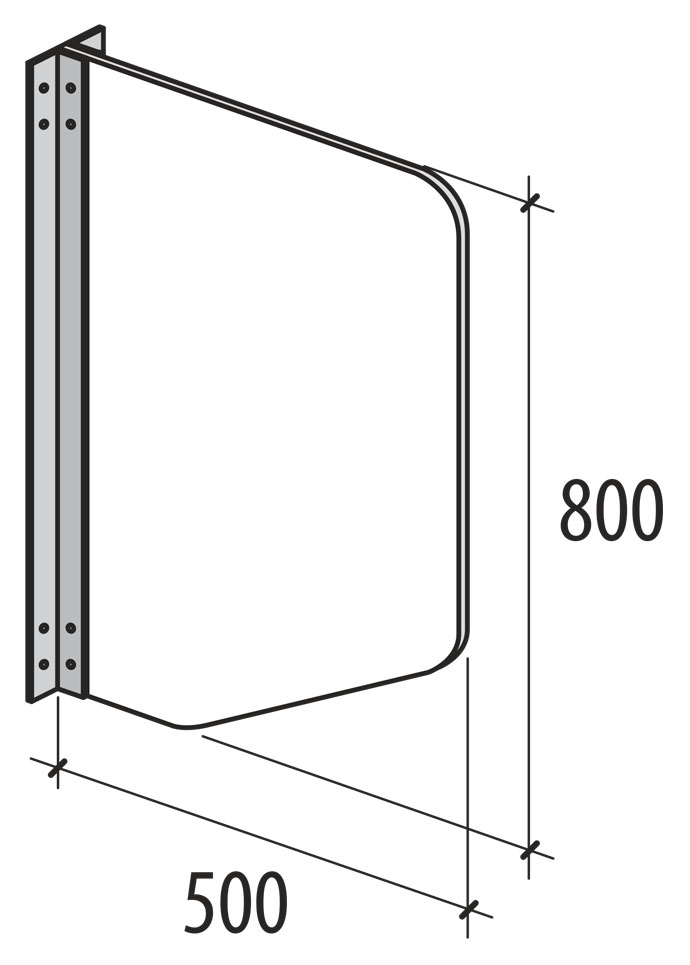

    White HPL Panel

    White HPL Panel

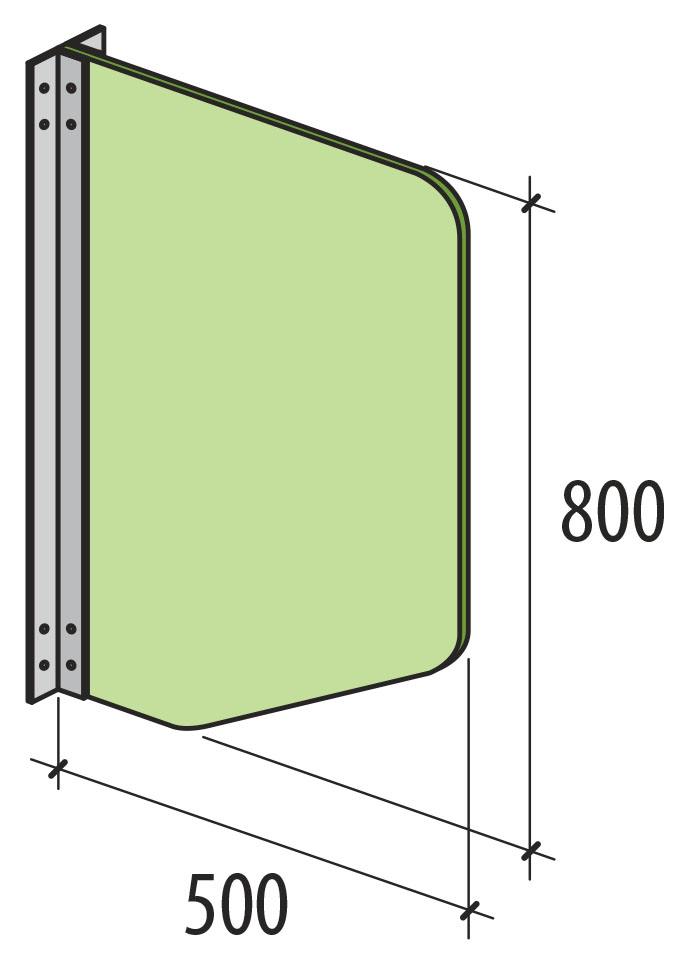

    Green HPL Panel

    Green HPL Panel

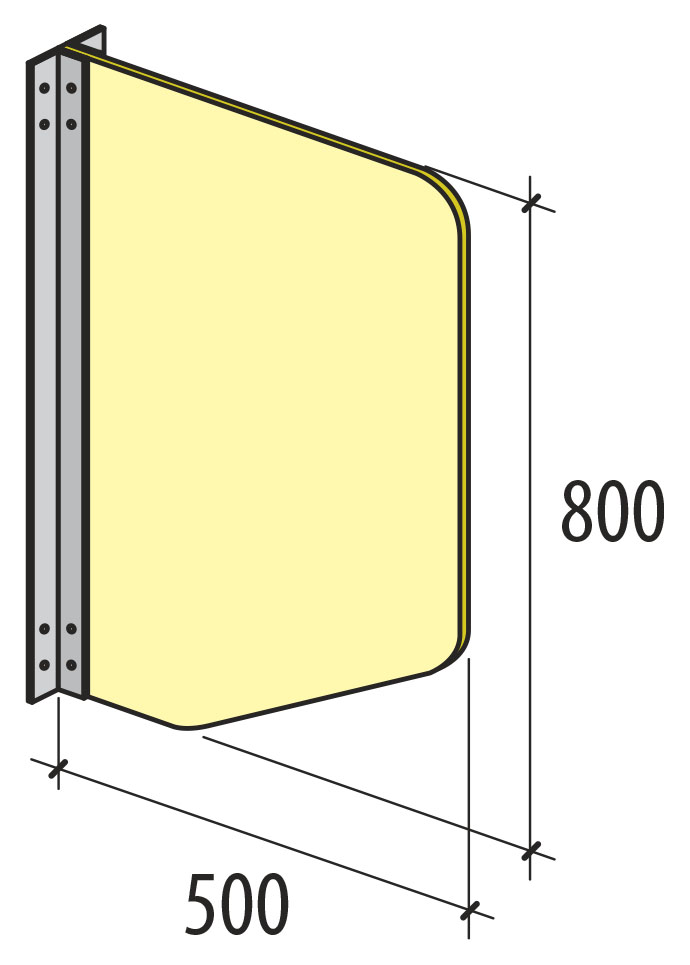

    Sandy HPL Panel

    Sandy HPL Panel

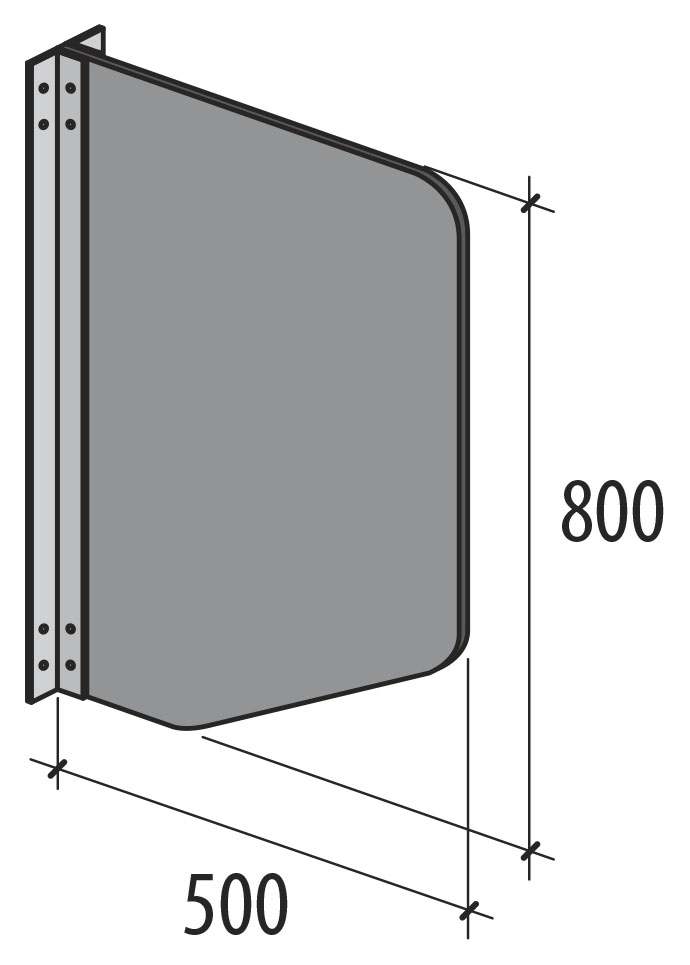

    Grey HPL Panel

    Grey HPL Panel

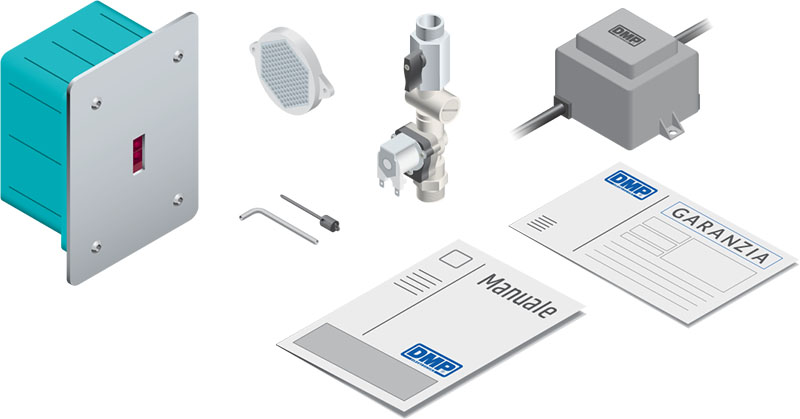

Pack contents
Contents of the package

Contents of the package
