General Details
Electronic tap with anti-scratch and anti-limescale DMP sensor
3V waterproof electronic circuit
Solenoid valve built into the tap body
Sensor beam adjustable from 5 to 30 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Polished chrome-plated brass body Ø 40 mm, 45° tilt
With built-in, under sink mixer or for pre-mixed water
Miniature components, integrated in the chrome-plated brass body
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Stop taps with in-built stainless steel filters and non-return valves

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

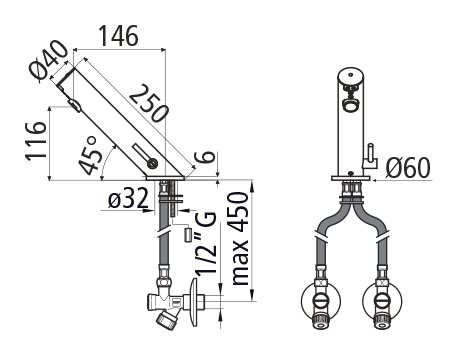

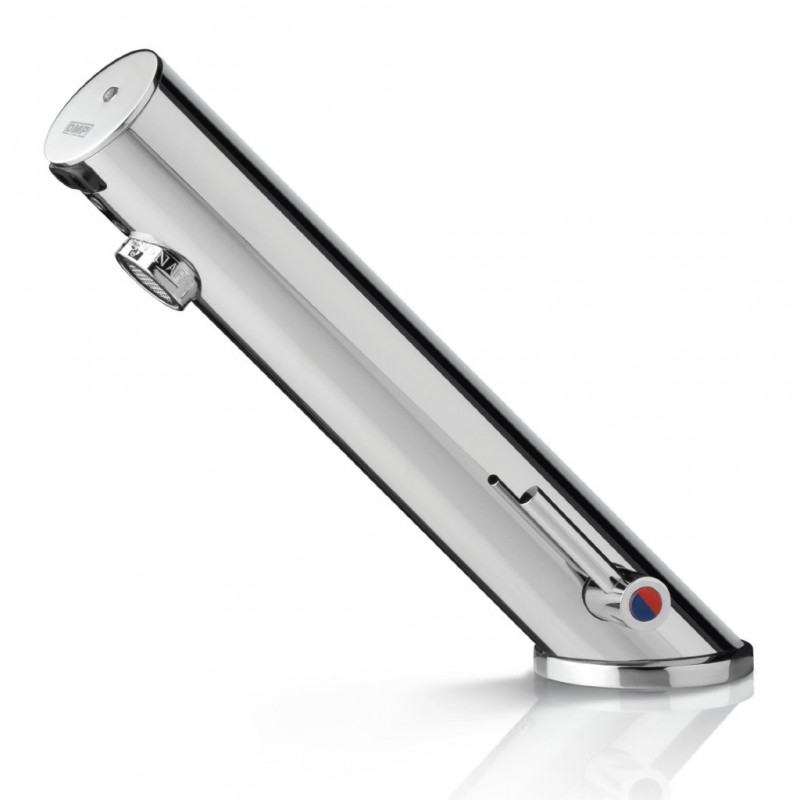

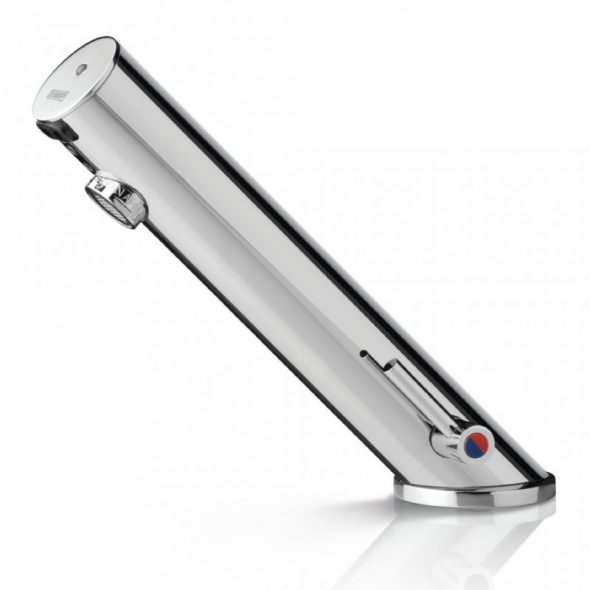

  1. Quary Mix with hot/cold water mixer
    Quary Mix
    Power: Electricity or battery
    Colours: Polished chrome

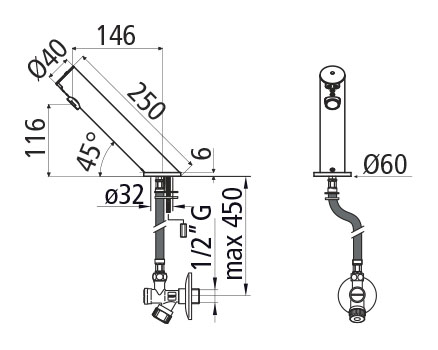

  2. Quary Tap for cold or pre-mixed water
    Quary Tap
    Power: Electricity or battery
    Colours: Polished chrome

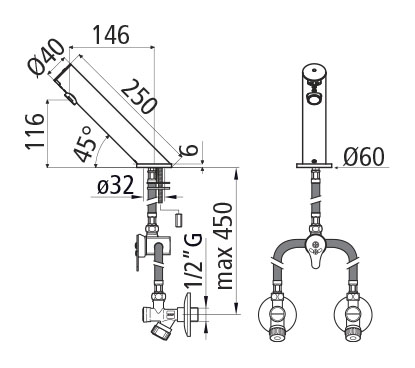

  3. Quary Tap MS with under sink mixer
    Quary Tap MS
    Power: Electricity or battery
    Colours: Polished chrome
    Notes: The mixer handle can be blocked after the adjustment
Data Sheet (only for registered users)

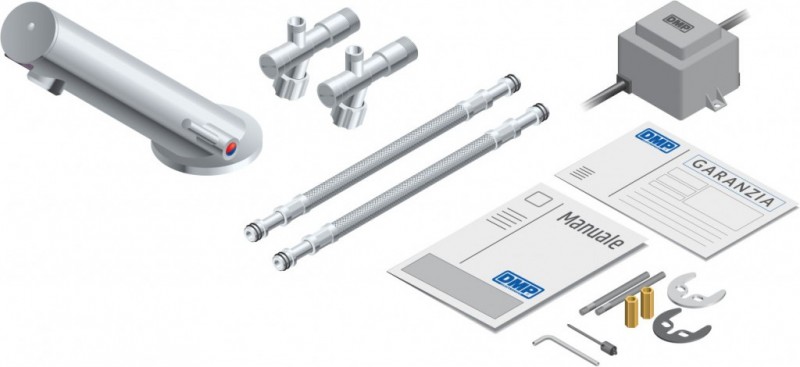

Pack contents
Notes

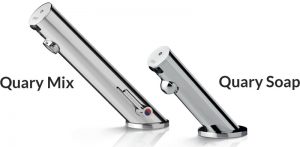

DMP recommends Quary Tap together with the Quary Soap electronic soap dispenser.

quary+quarysoap
