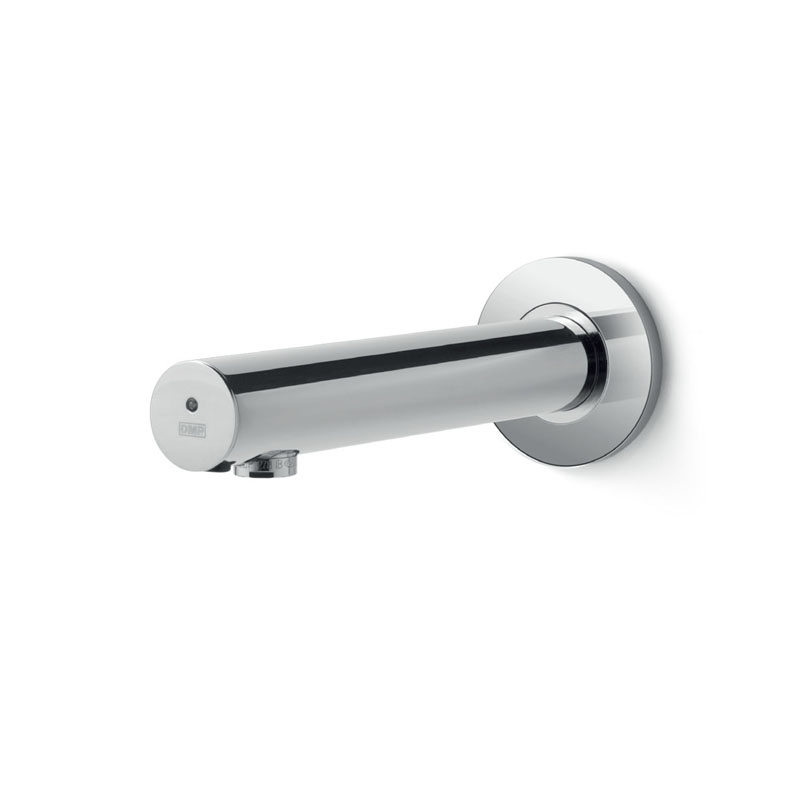

Miniuno 32
General Details
For all models
Electronic tap with anti-scratch and anti-limescale DMP sensor
3V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Sensor beam adjustable from 8 to 35 cm
Polished chrome-plated brass body
Available in two different configurations:
– can be installed only in technical area or corridor (MiniUno 32)
– can be installed only with recessed boxes (MiniUno 32 CC)
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Solenoid valve with triple stainless steel anti-contaminant filter
Stop taps with in-built stainless steel filters and non-return valves
Electronic tap with anti-scratch and anti-limescale DMP sensor
3V waterproof electronic circuit
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Sensor beam adjustable from 8 to 35 cm
Polished chrome-plated brass body
Available in two different configurations:
– can be installed only in technical area or corridor (MiniUno 32)
– can be installed only with recessed boxes (MiniUno 32 CC)
Anti-flooding automatic stop after 90 seconds
Standard water flow: 6 litres/minute. Optional: 1.9 or 3 litres/minute
Solenoid valve with triple stainless steel anti-contaminant filter
Stop taps with in-built stainless steel filters and non-return valves
For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case
For mains models
230Vac – 5Vdc safety transformer
Model and feeding

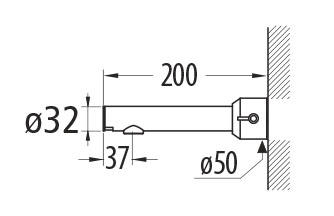

- MiniUnoMix 32 with hot/cold water mixerMiniUnoMix 32200Power: Electric current or battery
Colours: Polished chrome
Notes: Fitting in technical area or service corridor (see details in the drawing below)

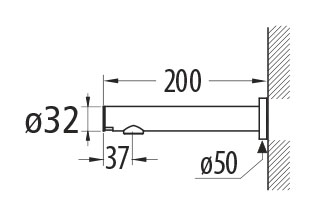

- MiniUno 32 for cold or pre-mixed waterMiniUno 32200Power: Electric current or battery
Colours: Polished chrome
Notes: Fitting in technical area or service corridor (see details in the drawing below)
- MiniUno 32 CC for cold or pre-mixed waterMiniUno 32 CCPower: Electric current or battery
Colours: Polished chrome
Notes: Fitting with recessed box (see details in the drawing below)

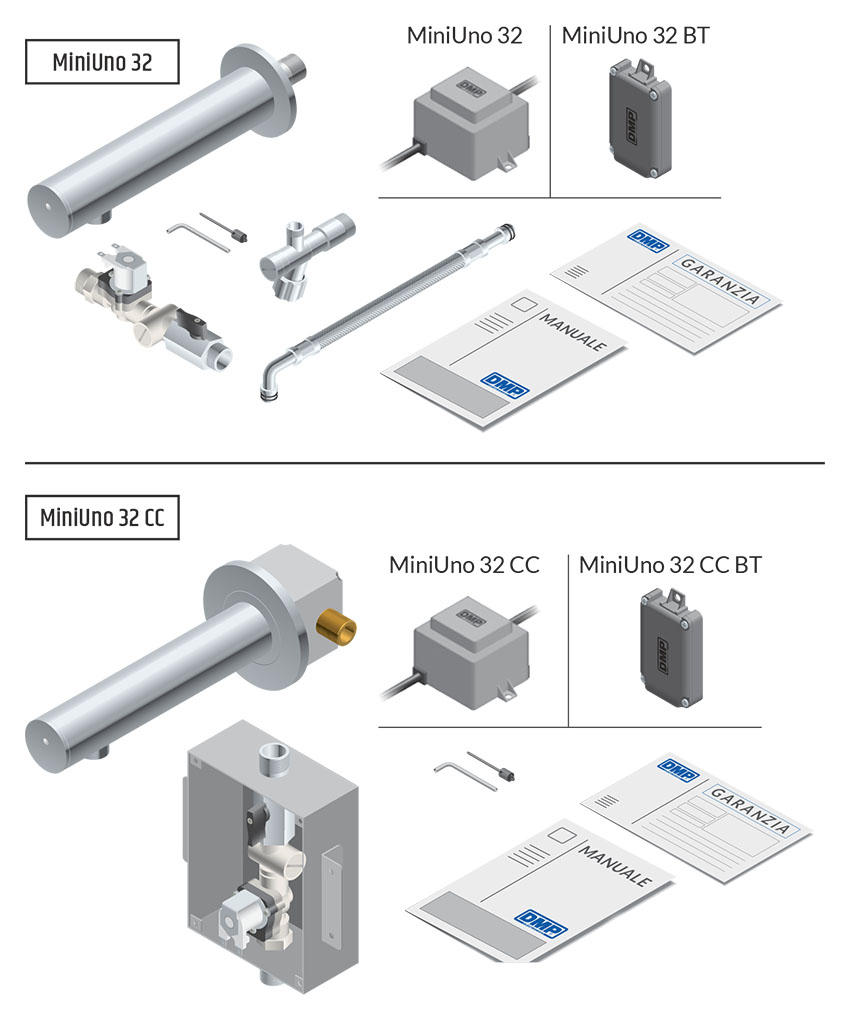

Pack contents
Contents of the package
Notes

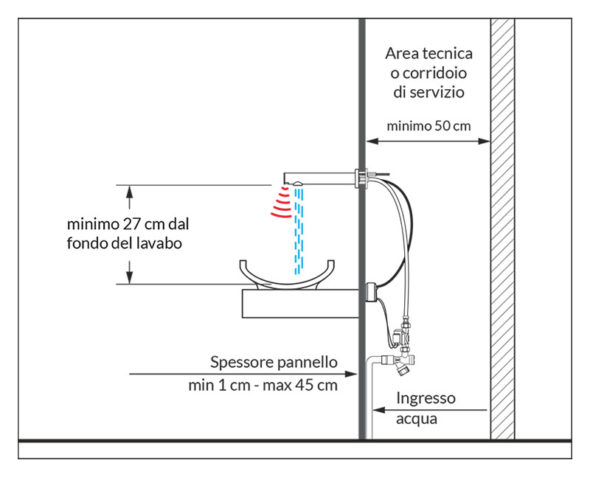

MiniUnoMix 32 – MiniUno 32
The MiniUnoMix 32 and MiniUno 32 models can be installed ONLY
if an appropriate technical area or service corridor measuring 50cm
minimum is present in the site.
The MiniUnoMix 32 and MiniUno 32 models can be installed ONLY
if an appropriate technical area or service corridor measuring 50cm
minimum is present in the site.

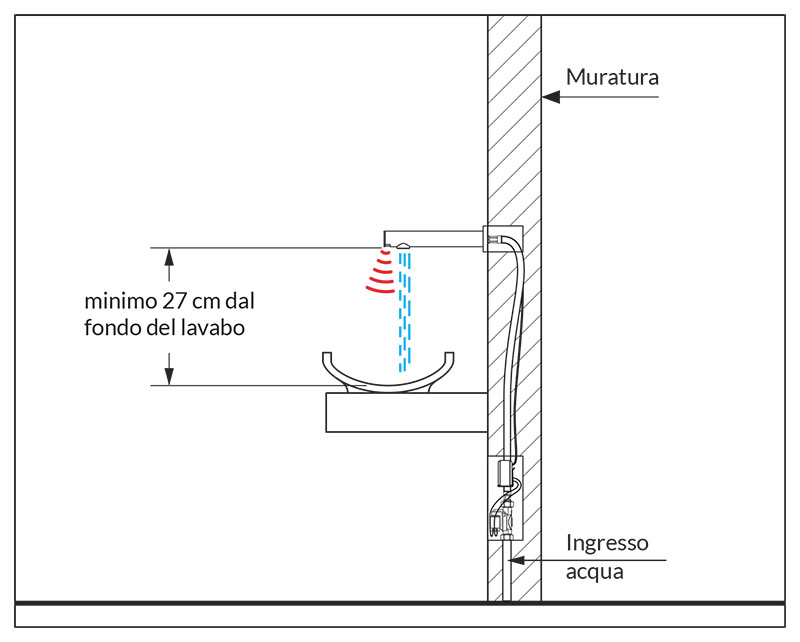

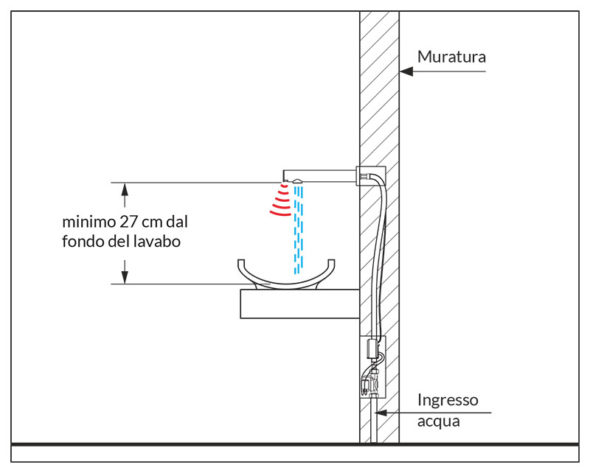

MiniUno 32 CC
The MiniUno 32 CC models can be installed directly onto the wall,
with the appropriate recessed boxes, top for the tap and bottom for
the solenoid valve.
