Fin Glass

General Details
Model and feeding
Pack contents

General Details

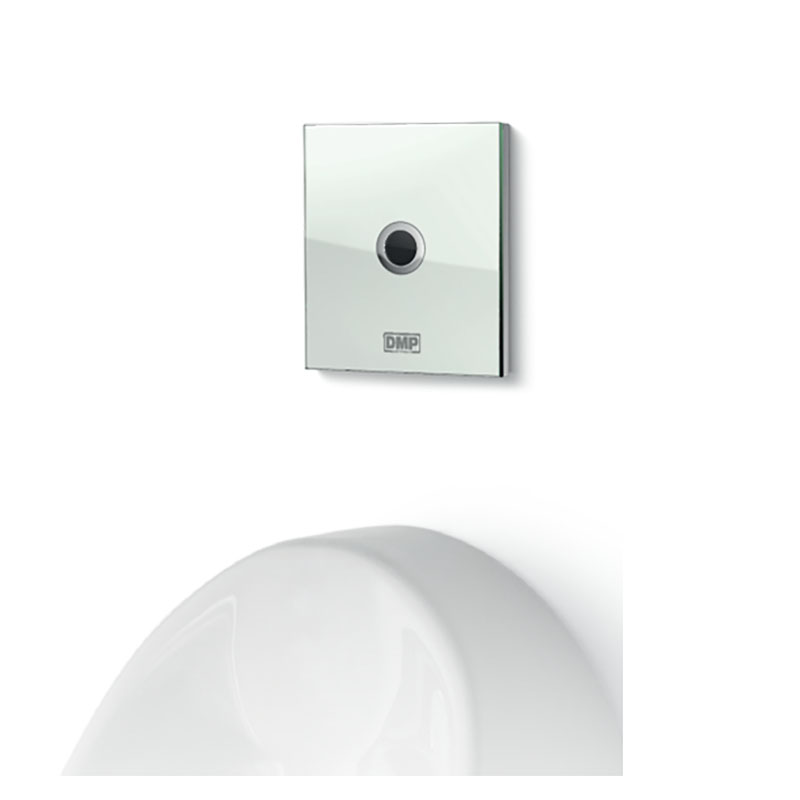

Recessed electronic system for single urinal
Plate in back-painted tempered glass with AISI 304 stainless steel frame
Scratch-proof DMP Infrared Sensor protected from calcium deposits with AISI 304 stainless steel ring
3V waterproof electronic circuit
Sensor beam adjustable from 20 to 80 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Adjustable water quantity
Water flush with 2 methods:
– on approach
– on leaving
Antibacterial automatic courtesy flush every 12 hours
Stop tap with 0.2 mm mesh stainless steel filters

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

Fin Glass

Fin Glass 200

Power: Electricity or battery
Plate colour: White
Notes: Without manual button. 2 sec. initial flow and flush on leaving
Accessories

DH-01 series urinal

White ceramic
With tilting system for maintenance and with articulated syphon

Metal frame

for plasterboard walls
for Fin Glass

Metal frame

for plasterboard walls
for DH-01

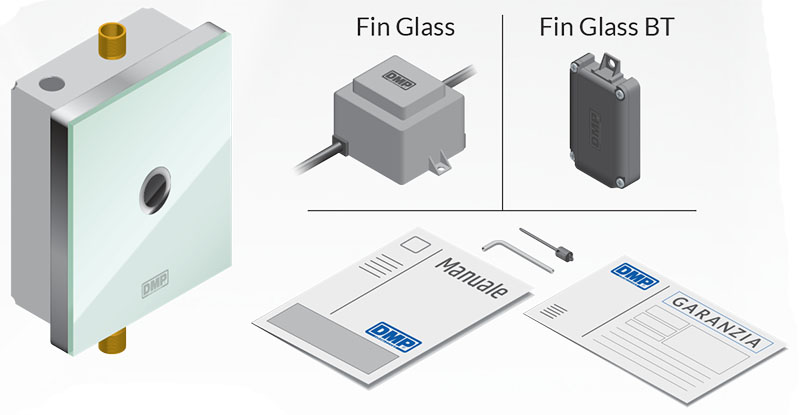

Pack contents

Contents of the package
