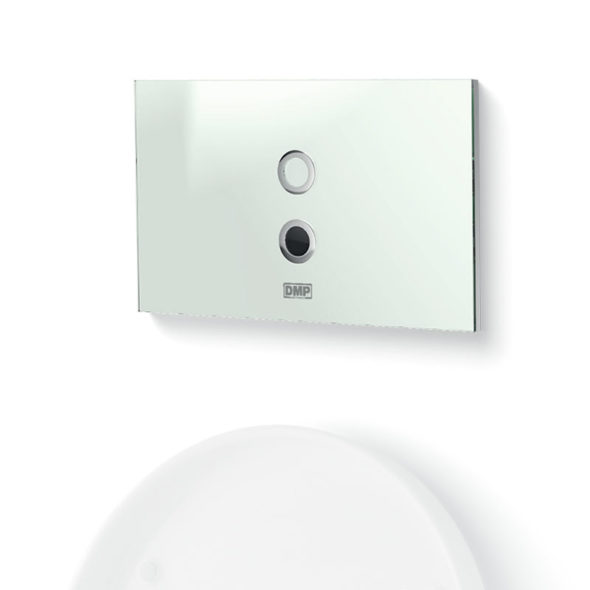

Dikaflush Glass

General Details
Electronic system for single WC with recessed cistern
Plate in back-painted tempered glass with AISI 304 stainless steel frame
Scratch-proof DMP Infrared Sensor protected from calcium deposits with
AISI 304 stainless steel ring
4.5V waterproof electronic circuit
Sensor beam tilted by 15° and adjustable from 20 to 80 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Function for manual use that can be activated when no power is available
With or without pre-flush before the main flush
Available for floor WCs (ST Glass) and hanging WCs (Tecno Glass and VSG Glass)
Option: sensors with hand approach activation
Antibacterial automatic courtesy flush every 12 hours
Stop tap with 0.2 mm mesh stainless steel filter”

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding

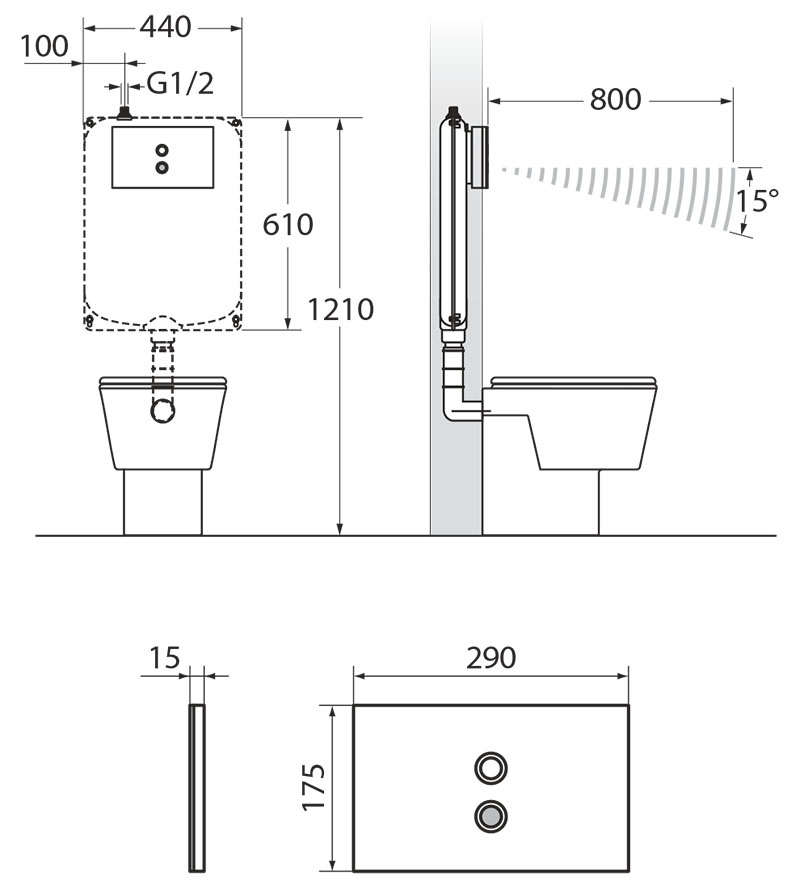

  1. Dikaflush ST Glass
    Dikaflush ST Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush VL Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush RA Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush ST 34 Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.
    * measures in millimeters

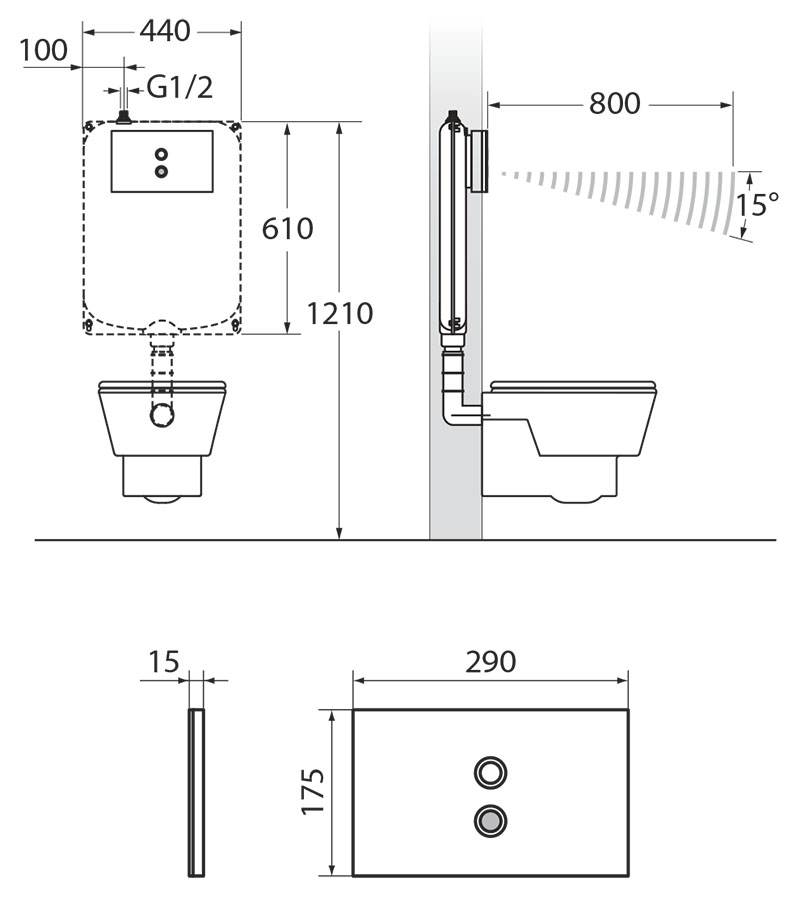

  2. Dikaflush VSG Glass
    Dikaflush VSG ST Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush VSG VL Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes:With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush VSG RA Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush VSG ST 34 Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.
    * measures in millimeters

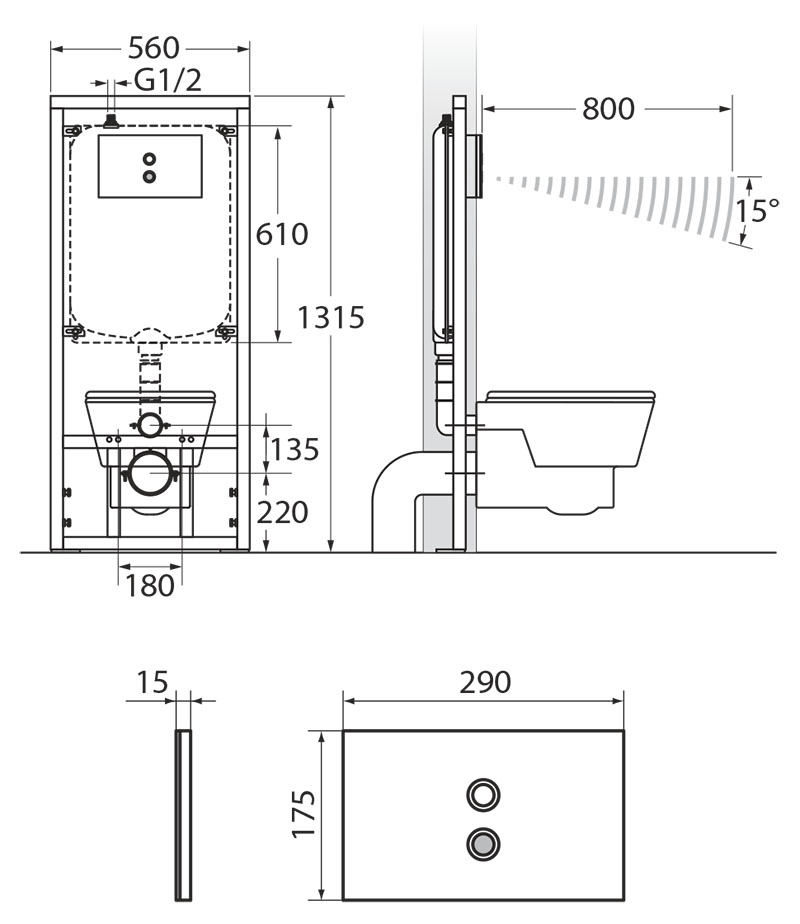

  3. Dikaflush Tecno Glass
    Dikaflush Tecno ST Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush Tecno VL Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush Tecno RA Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush Tecno ST 34 Glass
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.
    * measures in millimeters

Pack contents

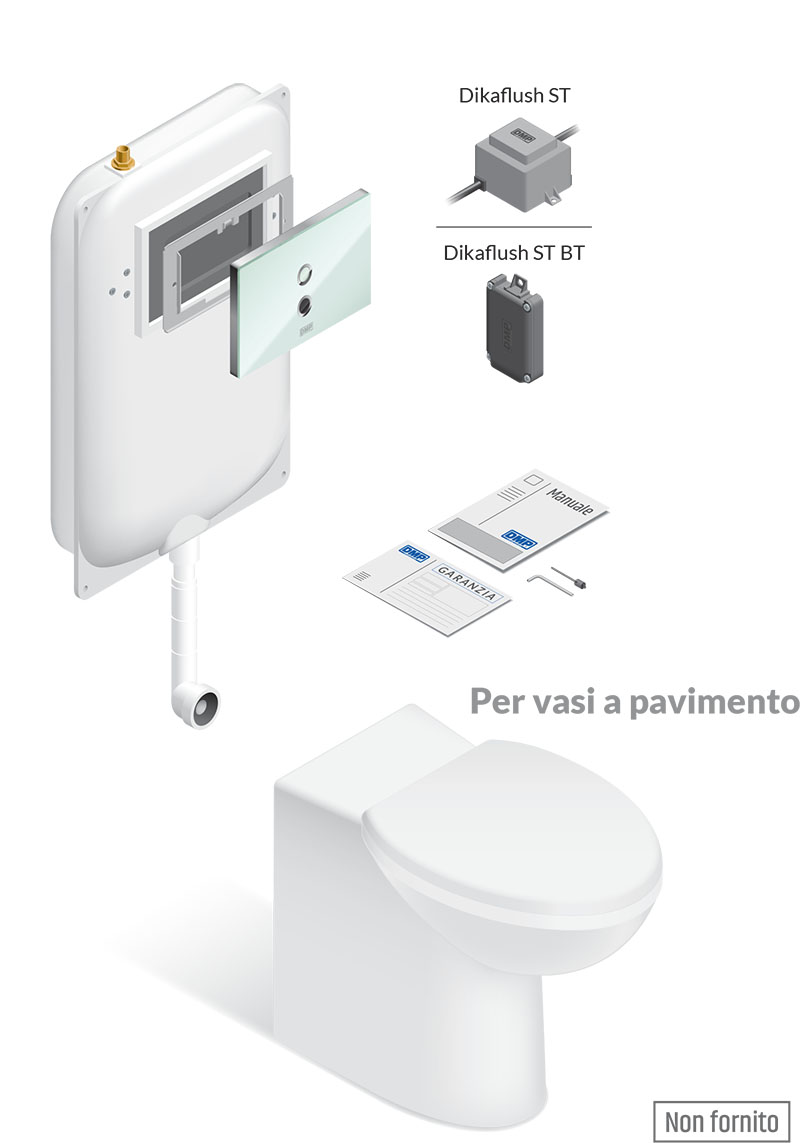

Package Contents Dikaflush Glass ST

Dikaflush Glass ST

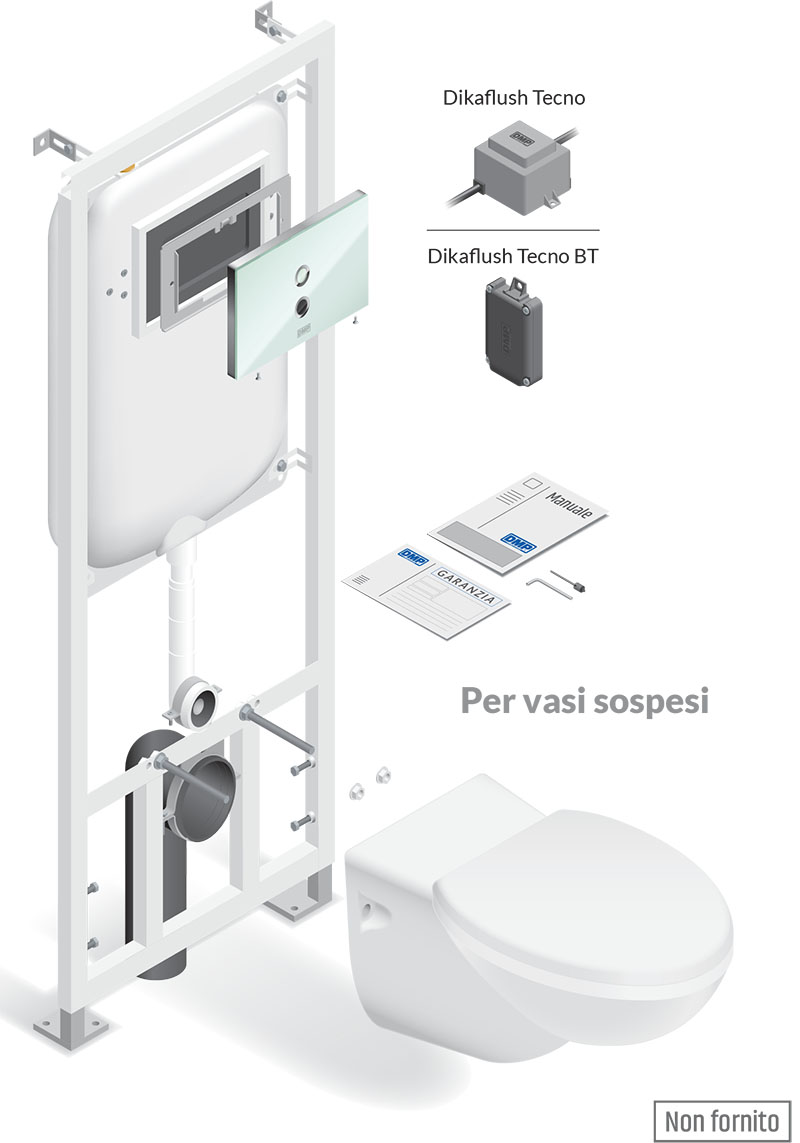

Package Contents Dikaflush Glass Tecno

Dikaflush Glass Tecno

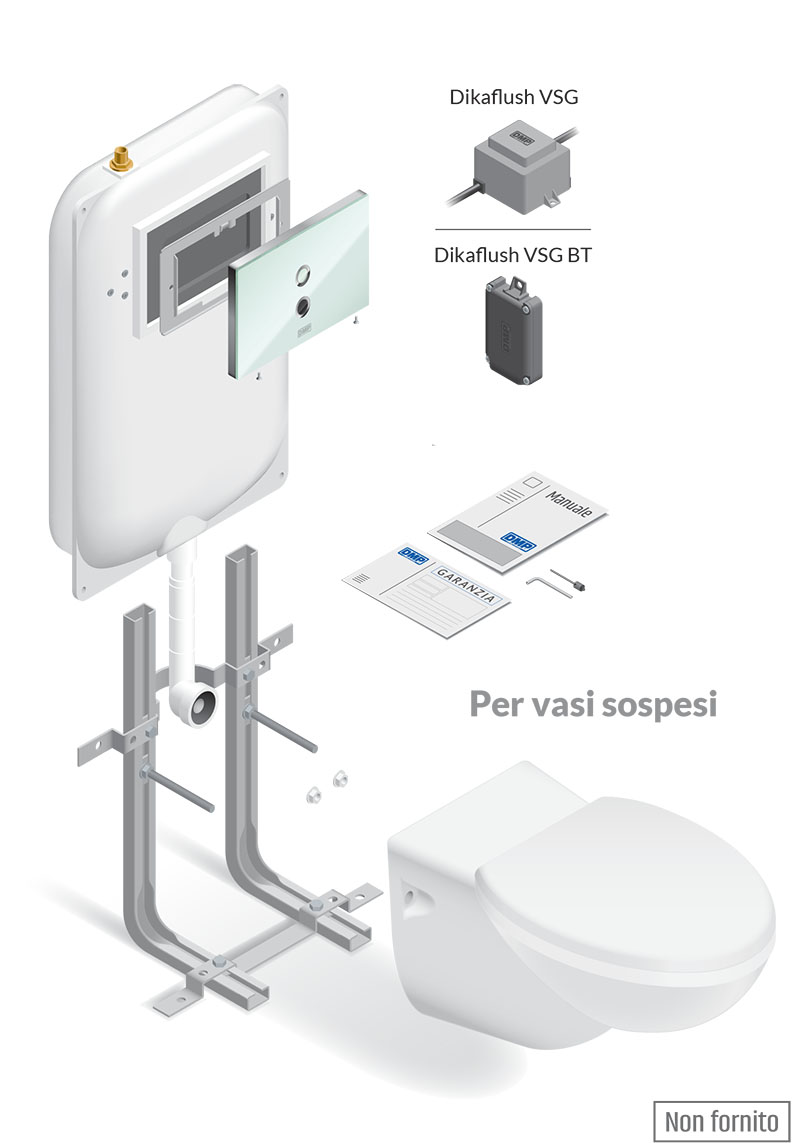

Package Contents Dikaflush Glass VSG

Dikaflush Glass VSG
