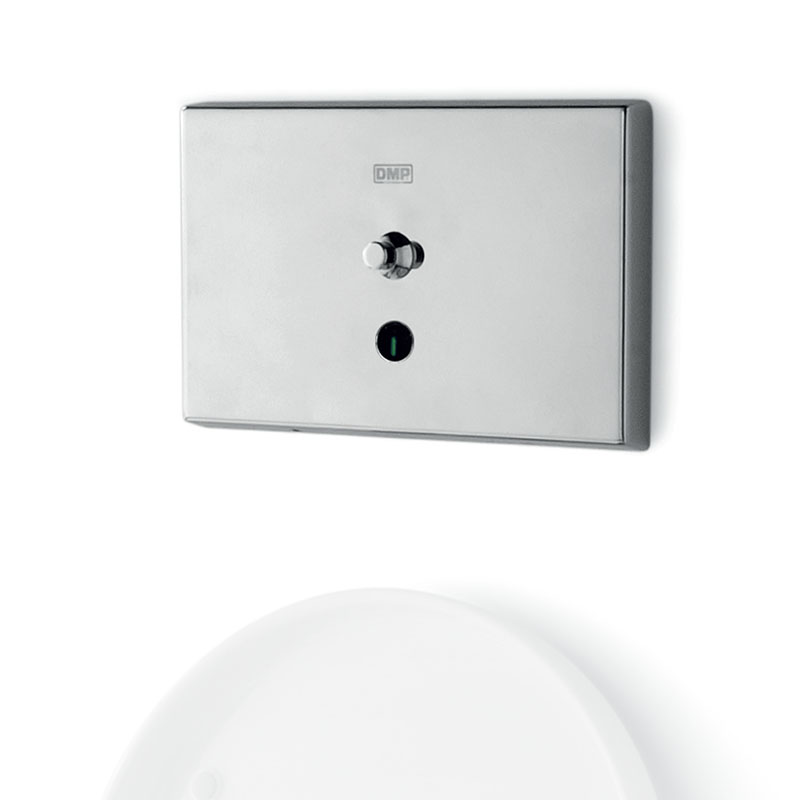

Dikaflush

General Details
Electronic system for single WC with recessed cistern
AISI 304 stainless steel plate
Scratch-proof DMP Infrared Sensors protected against calcium deposits
4.5V waterproof electronic circuit
Sensor beam tilted by 15° and adjustable from 20 to 80 cm
Microchip programmed to control all functions
Functions optimized using DMP integrated software
Function for manual use that can be activated when no power is available
With or without pre-flush before the main flush
Available for floor WCs (ST) and hanging WCs (Tecno and VSG)
Option: sensors with hand approach activation
Antibacterial automatic courtesy flush every 12 hours
Stop tap with 0.2 mm mesh stainless steel filter”

For battery models
1.5V alkaline AA batteries
Battery life: 4 years with an average of 200 operations per day
Warning of flat batteries through LEDs on sensors
Built-in waterproof battery case

For mains models
230Vac – 5Vdc safety transformer

Model and feeding
  1. Dikaflush ST
    Dikaflush ST
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush VL
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush RA
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush ST 34
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.

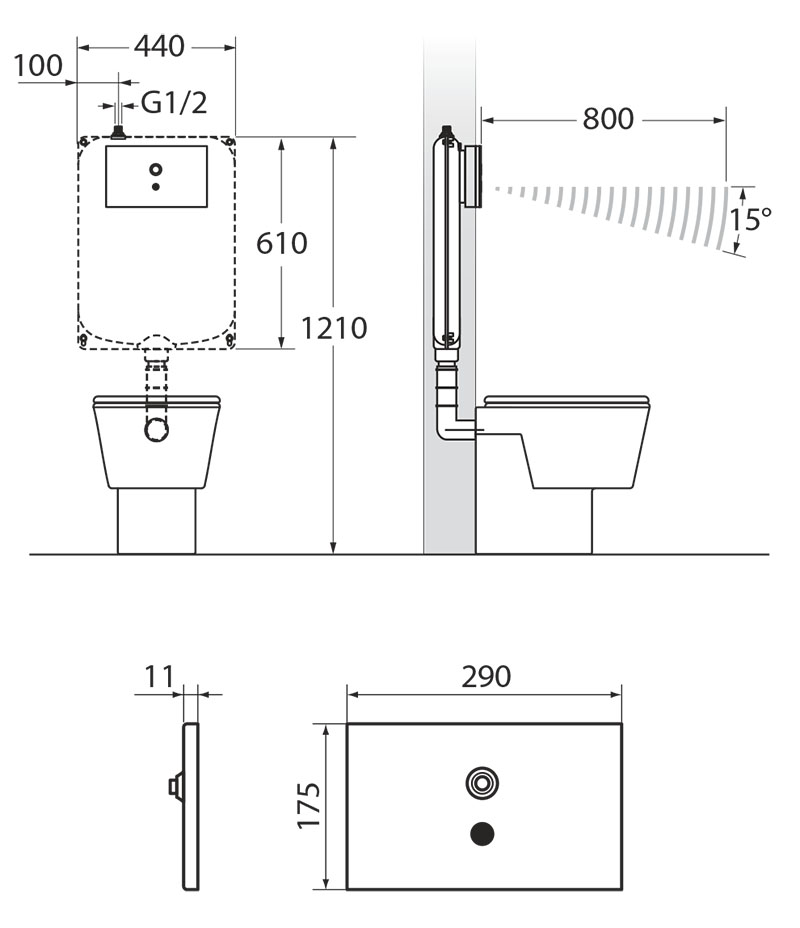

    * measures in millimeters

  2. Dikaflush VSG
    Dikaflush VSG ST
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush VSG VL
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush VSG RA
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes:With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush VSG ST 34
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.
    * measures in millimeters

  3. Dikaflush Tecno
    Dikaflush Tecno ST
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: Without pre-flush. Complete flushing occurs a second after the person has left (stayed for longer than 4 seconds)
    Dikaflush Tecno VL
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With continuous pre-flush before main flush. The pre-flush activates as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves
    Dikaflush Tecno RA
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: With intermittent pre-flush before main flush. The pre-flush activates intermittently (every 25 seconds) as soon as a person is detected and deactivates when he/she leaves; main flushing occurs when the person leaves.
    Dikaflush Tecno ST 34
    Power: Electricity or battery
    Plate colour: White temp. glass
    Notes: On hand approach. With no pre-flush, with short-range sensor. Flushing takes place as soon as the hand is within 10cm from the optical sensor.
    * measures in millimeters

Pack contents

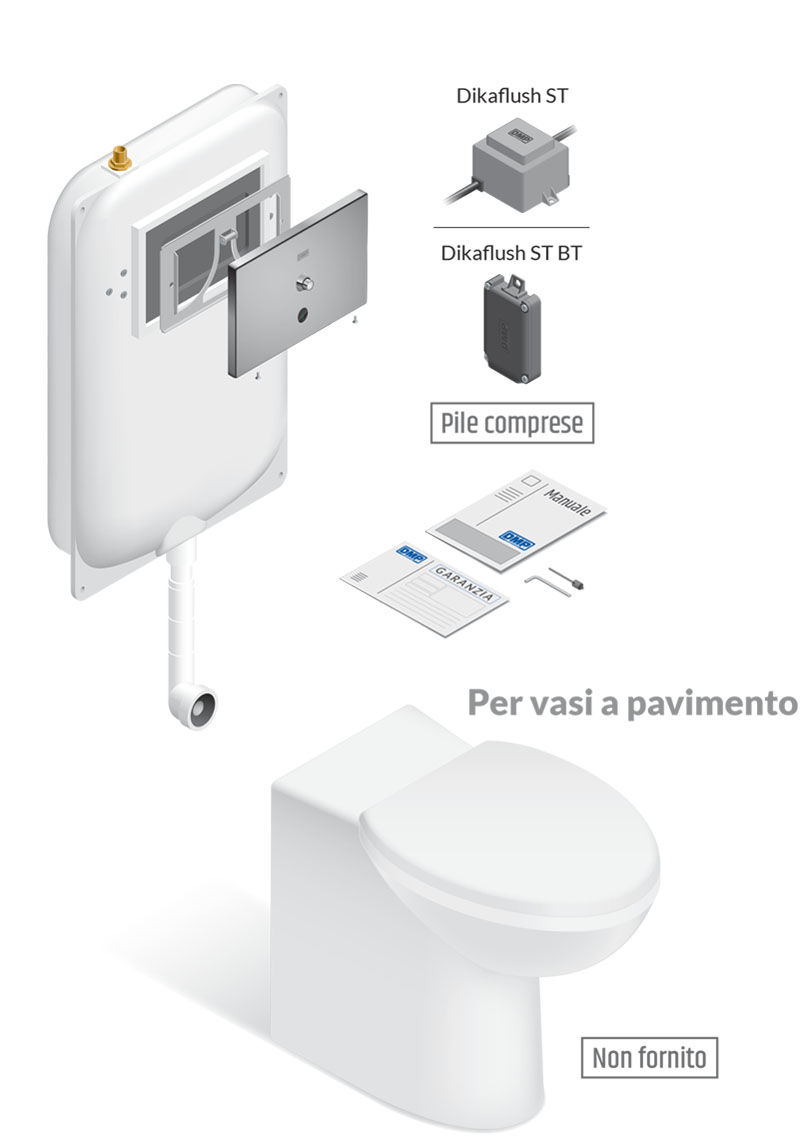

Package Contents Dikaflush ST

Dikaflush ST

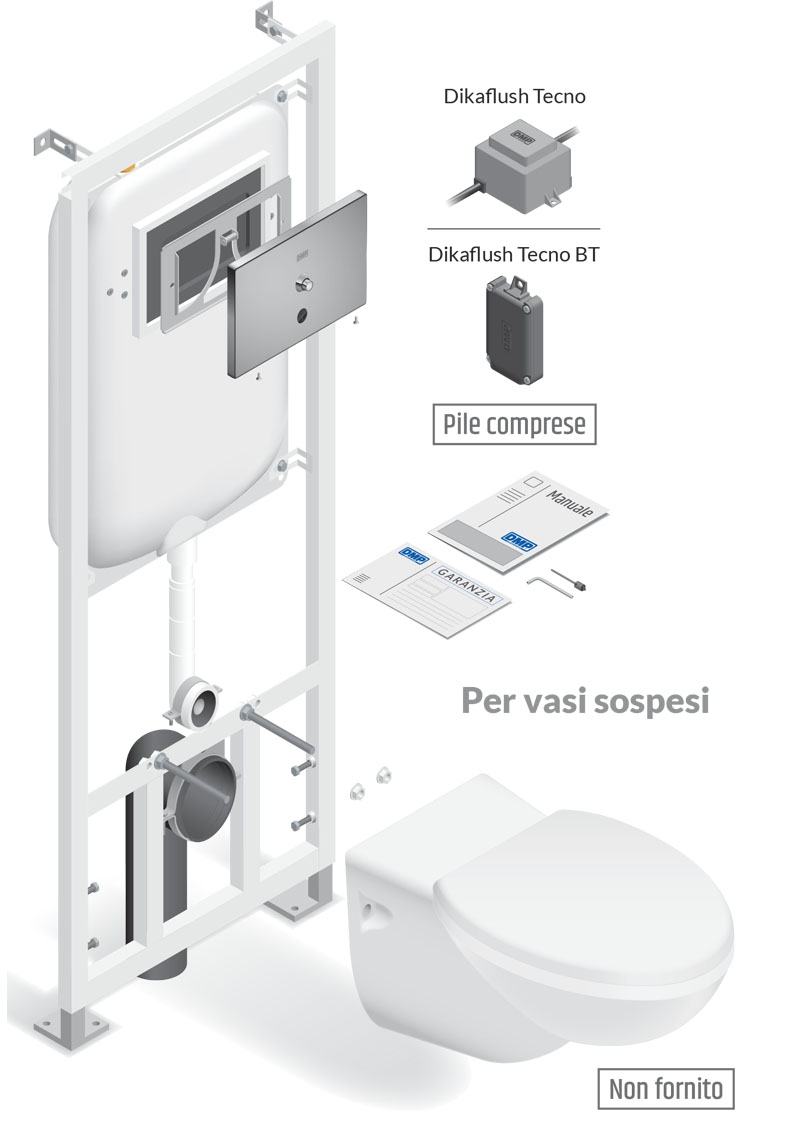

Package Contents Dikaflush Tecno

Dikaflush Tecno

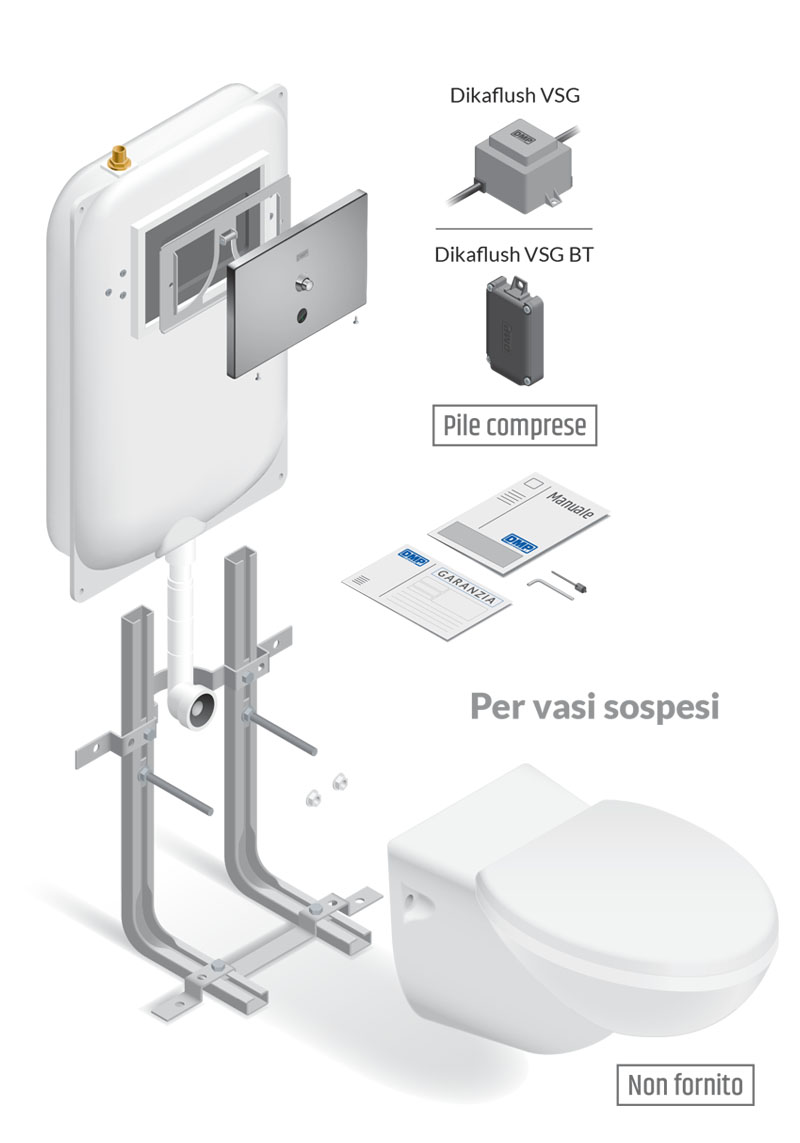

Package Contents Dikaflush VSG

Dikaflush VSG
