DCE 28 ST
General Details

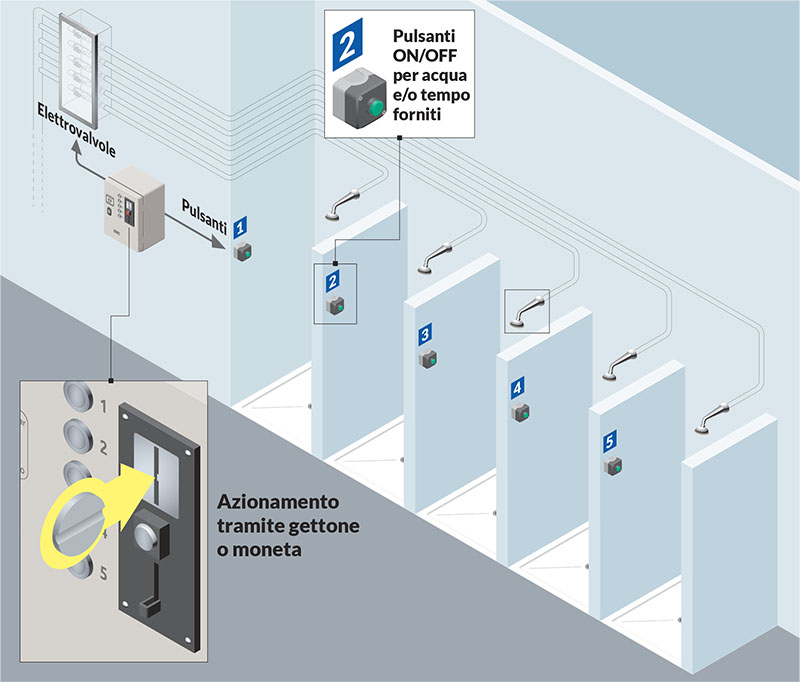

Control for multiple timed shower with up to 8 shower cubicles
Operation with token or 0.20€/cent, 0.50€/cent or €1
Cubicle selection using IP65 luminous stainless steel button
Adjustable water flow from 1 to 7 minutes
Electronic circuit protected against humidity
Rust-proof, fibreglass box
Microchip to control functions with DMP software
Time doubling with appropriate button and double token
Warning with 3 water jets 30 seconds before the time expires
Free/engaged indicator lights
Watertight On-Off button supplied for each station
The button stops and starts both water and time (see table on the side)
Operation with token or 0.20€/cent, 0.50€/cent or €1
Cubicle selection using IP65 luminous stainless steel button
Adjustable water flow from 1 to 7 minutes
Electronic circuit protected against humidity
Rust-proof, fibreglass box
Microchip to control functions with DMP software
Time doubling with appropriate button and double token
Warning with 3 water jets 30 seconds before the time expires
Free/engaged indicator lights
Watertight On-Off button supplied for each station
The button stops and starts both water and time (see table on the side)
Power
230Vac – 1Vac safety transformer
Model and feeding
- DCE 28 STDce STPower: Electricity
Notes: From 2 to 8 stations. Timer from 1 to 7 minutes.
- AccessoriesDMP-PL shower headChrome-plated brass arm
Head in chrome-plated ABS with scale-resistant rubber nozzles
DMP-MT shower headChrome-plated brass arm
Head in chrome-plated brass with scale-resistant rubber nozzles
DMP Token

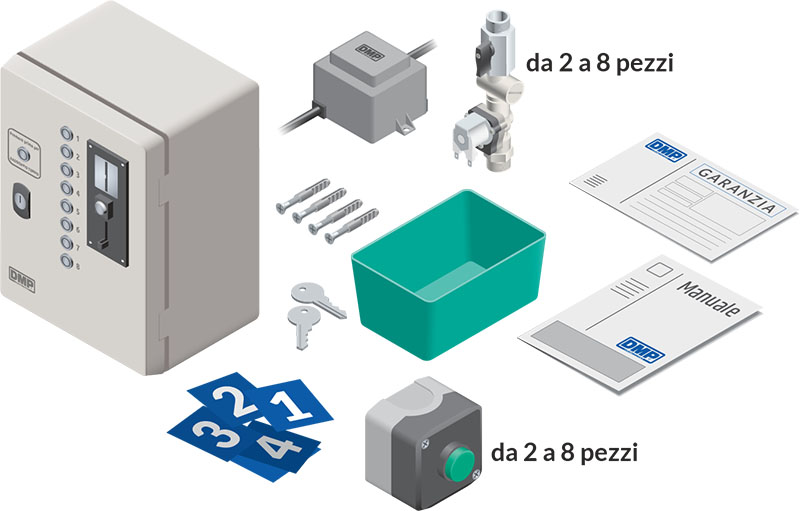

Pack contents
Contents of package
Notes
